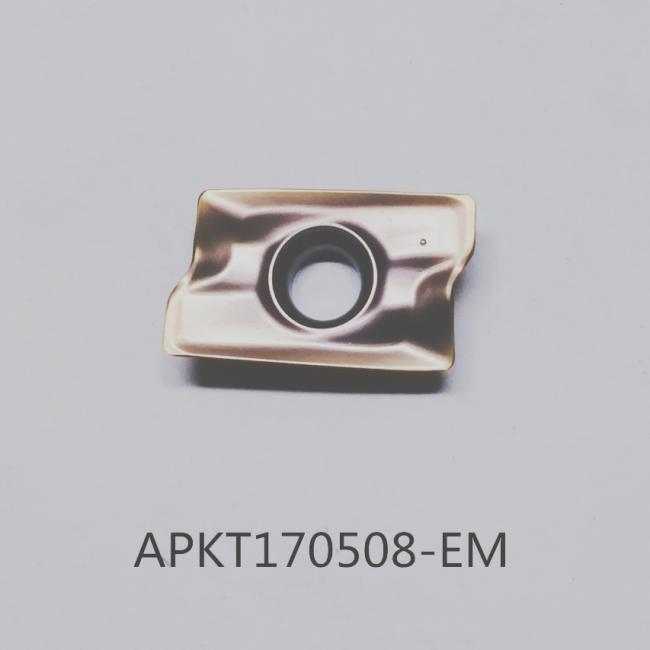

APKT170508-EM CNC Carbide Square Milling Insert HPO2P1 HPO3P5 HPO4P4
APKT170508-EM Cnc Carbide Inserts For Square series milling cutter blade
Square series milling cutter blade:
- Processing object: Roughing of mold steel tool steel and stainless steel
- Features: light cutting, anti-collapseperformance, high efficiency of roughing
- Common specifications:APKT/APMT/R390
- Commonly used grades:HPO2P1,HPO3P5,HPO4P4
Recommended Cutting Parameters:
- The following cutting parameters are the recommended range values, which should be adjusted as appropriate after considering the following factors:
- Specific physical properties of the material being processed
- Power and rigidity of the machine tool
- Clamping rigidity of tools and workpieces
- Balance between tool life and processing efficiency
|
ISO |
Material |
Hardness (HB) |
Diameter (mm) |
Feed (mm/r) |
Speed (m/min) |
|
P |
Carbon Steel |
80-200 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 - 0.09 0.06 - 0.10 0.07 - 0.11 0.08 - 0.12 |
170 - 240 |
|
P |
Low Alloy Steel |
150-260 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 -0.12 0.06 - 0.14 0.08 - 0.16 0.10 - 0.20 |
140 - 220 |
|
P |
High Alloy Steel |
150-320 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 - 0.12 0.06 - 0.16 0.08 - 0.18 0.10 - 0.22 |
120 - 180 |
|
P |
Cast Steel |
180-250 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.08 0.05 - 008 0.06 - 0.10 0.07 - 0.11 0.07 - 0.12 |
120 - 170 |
|
M |
Ferritic Stainless Steel Martensitic Stainless Steel |
150-270 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 - 0.12 0.06 - 0.16 0.08 - 0.18 0.10 - 0.22 |
110 - 230 |
|
M |
Austenitic Stainless Steel |
150-275 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 - 0.11 0.06 - 0.13 0.08 - 0.14 0.10 - 0.16 |
110 - 220 |
|
K |
Malleable Cast Iron |
150-230 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.10 0.05 - 0.14 0.08 - 0.16 0.10 - 0.20 0.12 - 0.24 |
120 - 220 |
|
K |
Gray Cast Iron |
150-220 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.10 0.05 - 0.14 0.08 - 0.16 0.10 - 0.20 0.12 - 0.24 |
170 - 240 |
|
K |
Ductile Iron |
160-250 |
13.0 - 21.0 22.0 - 33.0 34.0 -41.0 42.0 - 50.0 51.0-58.0 |
0.05 - 0.09 0.05 - 0.12 0.06 - 0.14 0.08 - 0.16 0.10 - 0.20 |
130 - 200 |
Recommended cutting parameters:
The following cutting parameters are recommended range values and should be adjusted as appropriate after considering the following factors:
Specific physical properties of the material being processed.
The actual condition of the part blank.
The power and rigidity of the machine.
Clamping rigidity of tool and workpiece.
Balance between tool life and machining efficiency.
tips:
1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price
2, due to the wide variety of cutting tools, if you need other models, please contact us.
3.Support multiple payment channels, 30 % advance payment
4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )
