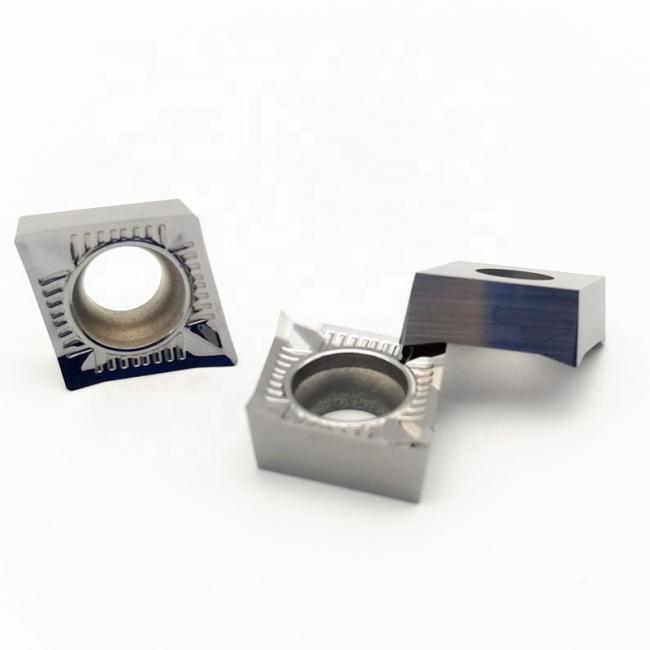

CCGT09T304 Cnc Carbide Inserts For Precision boring inserts series

Precision boring inserts series:

1.Processing object: finishing and semi-finishing of steel, hard steel and stainless steel

2.Features: light cutting, smooth chip removalhigh wear resistance

3.Common specification:CCGT/TPGH/TBGT/WBGT

4.Common used grade:H10T,HPO2P1,HPO2P5

Application:

• The first choice for non-ferrous metal processing such as aluminum alloy, ISO N material, t

Technical Information:

• ISO N, including non-ferrous materials and soft metals with a hardness lower than HB130, including high-strength bronze (>HB225).
• Mainly refers to aluminum alloys containing less than 12-13% Si.
• Aluminum cutting performance:

Long chip material. If it is an alloy, the control of the chips is relatively easy. Pure aluminum is tacky, requiring sharp cutting edges and high cutting speeds. The cutting force is low, so the power required for processing is also low. If the Si content of the material is less than 7-8%, it can be processed with fine-grained uncoated carbide inserts. If you are processing aluminum with a high Si content, use a PCD tool.

Feature Advantage:

• Chipbreaker AL:
  • Class G precision, precision grinding of five-axis grinding machines.
  • The large rake angle and the back corner make the blade edge sharper.
  • Ensure effective chip breaking and make the cutting more brisk.
  • Surface finish to effectively prevent built-up edge, high quality machined surface and long tool life.

Recommended Cutting Parameters:

tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )
