FTD 8 Channel PA Power Amplifiers 8*400W 57V Power Amp PA

Price Negotiable

Price: $ 130~600

MOQ: 10 pcs

Delivery Time: 7 work days

Brand: FTD

Product Description

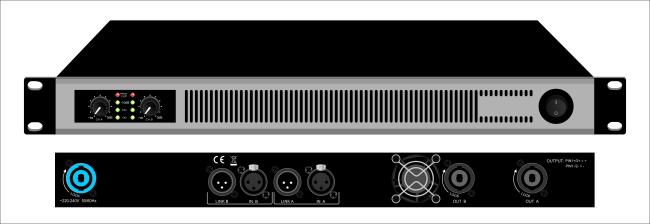

8*400W Pa Power Amplifiers Professional Power Amplifier Black

Features:

Robust performance range eight channel class-D power amplifier. Ideal for club, bar, restaurant & worship building sound system. Switching power technology digital Class-D level power amplifier. Green technology amplifier by 85% efficiency of less power consumption. Higher power output, less heat generation and longer life span. With PWM special power circuit to ensure excellent cooling system. 19" universal rack mount type in 1U height. Support power output of 8×500 Watt in stereo mode. 8 signal input connections by balanced phone jack. Loudspeaker outputs are connected using Speakon. Complete protection include clip, high temp, overload and short circuit. With four fans for cooling down the internal temperature. Visual indicator of output level meter, bridge, power, protection and clip.

Description:

The FTD 8 channel class-d amplifier FDP-8400 is designed of switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans. The eight channel class-D amplifier is of 19" rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The rated power output of this amplifier is 8×500W, so it is ideal for meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.

Specification

Model	FDP-8400
Description	Eight Channel Class-D Amplifier
Technology	Class-D
RMS Power @ 8 Ohm Stereo	8×400 Watt
RMS Power @ 4 Ohm Stereo	8×750 Watt
RMS Power @ 2 Ohm Stereo	8×750 Watt
Max Output	57V
Input Sensitivity	1V
Max Input Level	26dBu
Gain	34dB
THD	<0.5%
Crosstalk	>75dB
Frequency Response	20Hz~20KHz
Input Impedance	10K
Damping Parameter	>1000 (8Ω,20HZ~200HZ)
S/N Ratio	>105dB (20HZ~20KHZ)
Power Consumption	550VA (1/8 Max Output @4Ω)
Power Consumption	1100VA (1/4 Max Output @4Ω)
Connector	Input by Combo female, link by XLR female.
Efficiency	>85%
Power Supply	AC 220-240V or 115V, 50~60Hz
Dimension	484(W)430(D)44(H)mm
Weight	10.9kg
