SAE 4340 Steel Left Hand Helical Gear Shaft DP 1.5 24T Angle 5°
Price:
$1850.0/Piece
MOQ:
2 Pieces
Delivery Time:
60 Days
Brand:
YIZGEAR
Product Description
SAE 4340 Steel DP 1.5 24T Left Hand Helical Gear Shaft Helix Angle 5°
24 Tooth Helical Pinion Gear
- Diametral Pitch: 15
- Pressure Angle: 20°
- Starting Diameter: 14.667"
- Nunber of Teeth: 24
- Helix Angle: 5°
- Heat Treament: Induction Hardening. Hardness: 45-50 HRC
- Gear Grinding. Quality: ISO 6-7 Grade
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Cylindrical |
| Manufacturing Process | Gear Hobbing |
| Teeth Grinding | Included |
| Module (M) | 16.933 |
| Number of Teeth (Z) | 24 |
| Pressure Angle (α) | 20° |
| Lead Angle | 5° |
| Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Induction Hardening |
| Surface Hardness | 45-50 HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

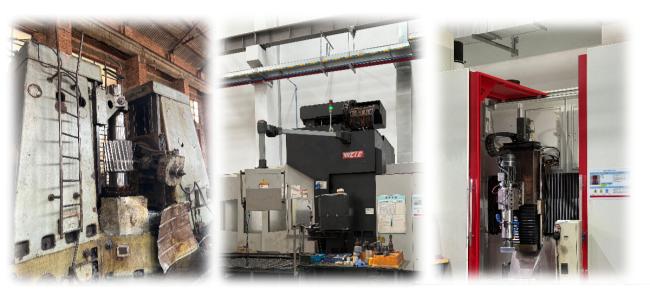

Production Equipment

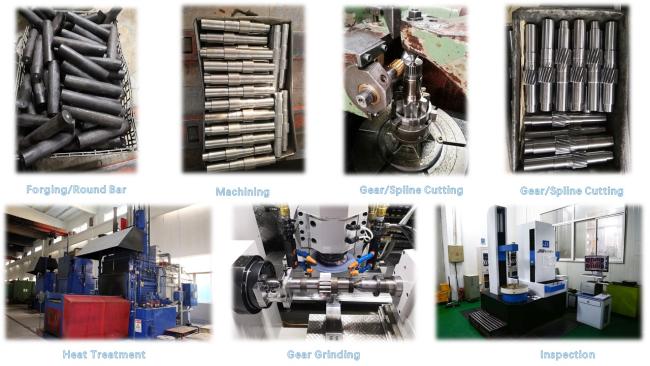

Manufacturing Process
