Transmission Double Helical Gear Pinion Hobbing Services 70mm ISO 8-9 Grade
Price:
$700/ Piece
MOQ:
1 Piece
Delivery Time:
75 Days
Brand:
YIZGEAR
Product Description
Transmission Gears- Pinion Double Helical Gear Hobbing Services
Diameter Pitch 1.5
Module: 16.933
Pressure angle: 20°
Helix angle: 15°
Material: 40CrNiMoA (SAE 4340)
Manufacturing Method: Gear Hobbing
Features of Double helical gear
- Double helical gear can provide higher efficiency.
- Resultant thrust force developed in double helical gear is zero.
- Double helical gear can transmit larger power.
- High helix angle can be advantageously used in double helical gear
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing Process | Gear Milling & Gear Teeth Hobbing |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | 35 |
| Pressure Angle (α) | 20° |
| Lead Angle | 22° |
| Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 260-300HB |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

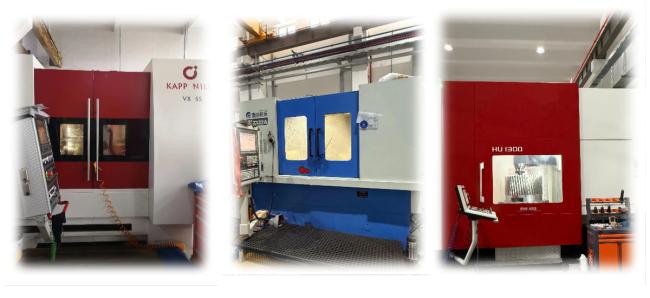

Production Equipment

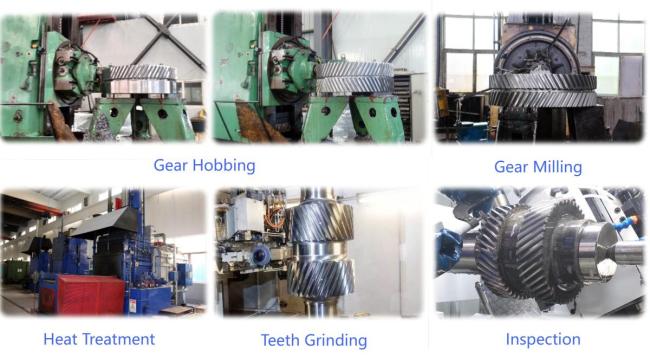

Manufacturing Process
