ISO 6 Grade and Carburizing Heat Treatment for Long-Lasting Transmission Gear Shaft
Price:
Negotiable
MOQ:
2 Sets
Delivery Time:
60 Days
Brand:
YIZGEAR
Product Description
1) Descriptions of Spiral Bevel Gear Shaft
The spiral bevel gear shaft is a revolutionary solution for modern precision transmission systems. Through the innovative integrated design of gears and shafts, it effectively addresses the reliability issues of the traditional split structure under heavy-load and high-speed operating conditions.
2) Advantagess of Spiral Bevel Gear Shaft
- Enhanced Reliability: The overall forging process boosts the fatigue life by 3 times.
- Space Optimization: Compared to traditional connection methods, it reduces the radial dimension by 35%.
- Precision Control: The combined grinding and honing process is adopted, with the surface roughness Ra of the gear teeth ≤ 0.4 μm.
- Simplified Maintenance: The design without coupling reduces the daily maintenance requirements by 60%.
3) Applications of Spiral Bevel Gear Shaft
- Automotive Manufacturing: Hybrid Transmission Output Shaft Assembly
- Industrial Automation: High-Precision Machine Tool Rotating Worktable Drive System
- Aerospace: Satellite Attitude Adjustment Mechanism Transmission Unit
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | 6 |
| Number of Teeth (Z) | 21 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

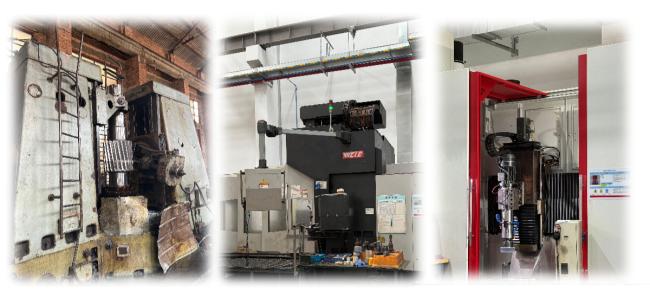

Production Equipment

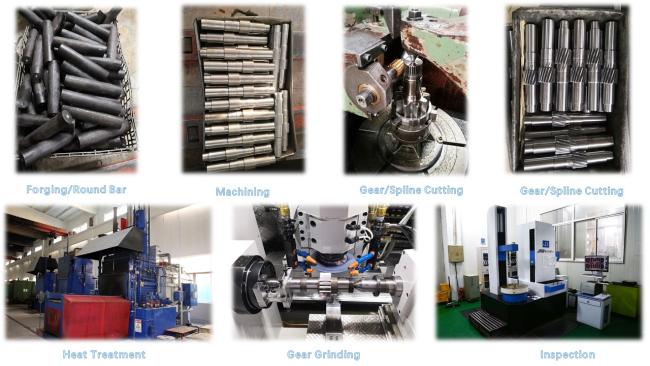

Manufacturing Process
