Customizable 58-62 HRC Transmission Gear Shaft in Long-Term Continuous Operation Equipment
Price:
Negotiable
MOQ:
200 Sets
Delivery Time:
30 Days
Brand:
YIZGEAR
Product Description
1) Descriptions of Transmission Gear Shaft
The performance of transmission components that require regular lubrication relies on lubricants to reduce friction and wear.
2) Features of Transmission Gear Shaft
- High lubrication requirements: grease or oil bath lubrication required.
- Critical sealing: protection against contaminants (e.g. labyrinth seals).
- Long maintenance intervals: quality design reduces downtime.
3) Working Principle of Transmission Gear Shaft
The lubricant forms an oil film on the mating surfaces of the gears, reducing contact stresses and heat build-up.
4) Application of Transmission Gear Shaft
Long-term continuous operation equipment such as wind turbine gearboxes and ship propulsion systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

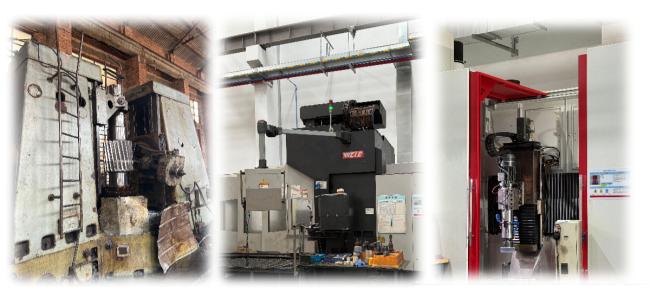

Production Equipment

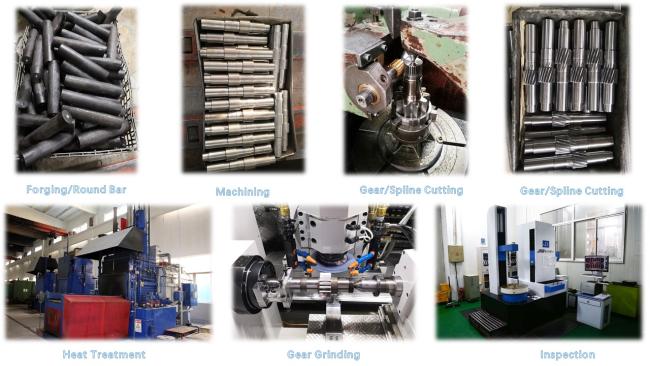

Manufacturing Process
