Custom Made Spiral Bevel Gears for Electric Vehicles and Medical Equipment
Price:
Negotiable
MOQ:
200 Sets
Delivery Time:
30 Days
Brand:
YIZGEAR
Product Description
1) Description of Spiral Bevel Gear
A type of bevel gear that reduces noise through helix angle design.
2) Feature of Spiral Bevel Gear
- The meshing impact is reduced by more than 30% compared to straight bevel gears.
- The high - frequency noise spectrum is smoother.
3) Working Principle of Spiral Bevel Gear
Multiple teeth mesh simultaneously to disperse the impact energy and suppress the propagation of vibrations.
4) Application of Spiral Bevel Gear
Drive axles of electric vehicles, precise transmissions of medical equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

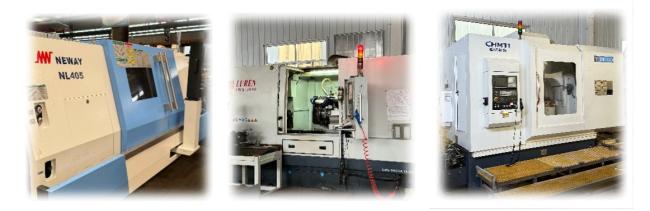

Production Equipment

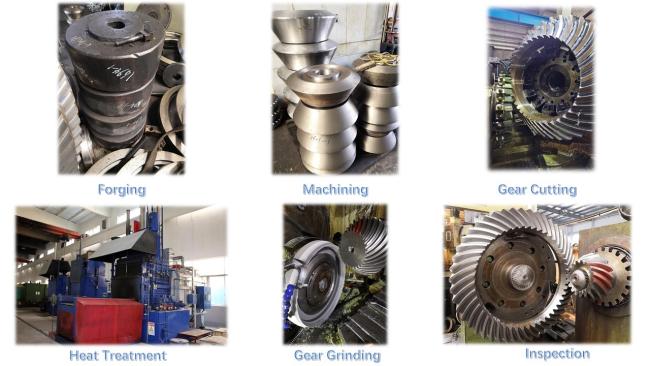

Production Process
