Right Hand Helix Shaft Gear Drive Shaft DIN 17CrNiMo6 Forging Steel
Price:
$850.0/Piece
MOQ:
5 Pieces
Delivery Time:
60 Days
Brand:
YIZGEAR
Product Description
Transmission Parts Right Hand Gear Helix Shaft Drive Shaft DIN 17CrNiMo6 Forging Steel
1) Features of Helcial Gear Shaft
- A single helical gear has teeth inclined in any one direction (either left hand helix or right hand helix).
- Single helical gears develop axial thrust force and exerts the same on corresponding bearings. It also develops radial force.
- Power transmission capacity of single helical gear is comparatively low.
- Because of thrust load, high helix angle cannot be used. Helix angle for single helical gear usually varies within 15º – 20º.
- Single helical gears are suitable for mechanical drives or power transmission requirements where each application usually requires a unique design for powers, speeds, and configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Cylindrical |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | 16 |
| Number of Teeth (Z) | 22 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

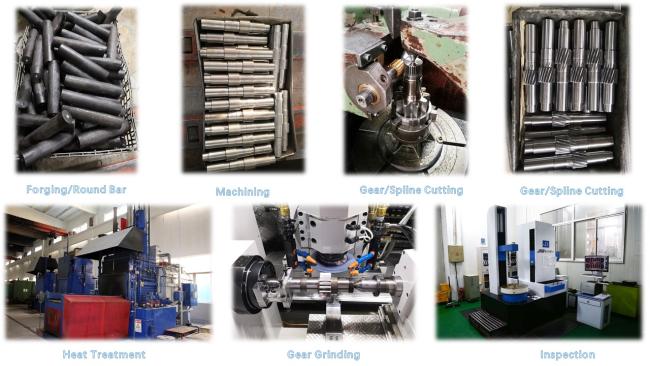

Production Equipment
