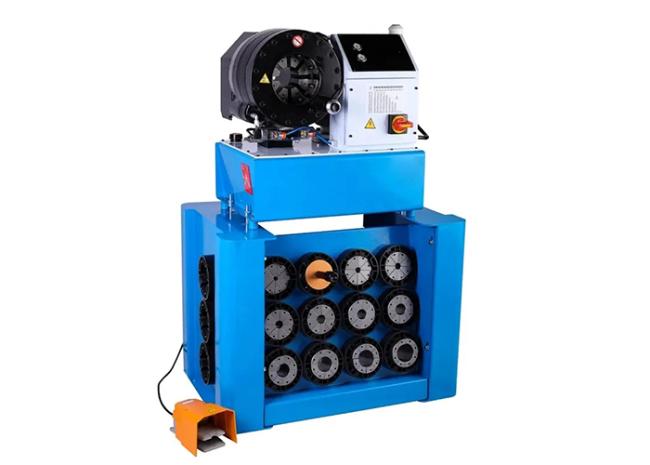

2.5 INCH HYDRAULIC HOSE CRIMPER MACHINE P32MS
DESCRIPTION
MS-E130 (now P32MS) pipe pressing machine support hydraulic high pressure hose up to 4 layers 2-1/2'' and industrial hose up to 3'' making. With large working stroke, and Ergonomic design. It is a Finn power style hose crimper with imported spares from famous brand, durable operating performance.
ADVANTAGES
► High efficiency
► Good product consistancy
► Simple operation
► High precision
TECHNICAL DATA
|
Model |
P32MS Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32MS CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
55mm |
|
16 |
16 ... 19mm |
55mm |
|
19 |
19 ... 22mm |
55mm |
|
22 |
22 ... 26mm |
70mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 34mm |
70mm |
|
34 |
34 ... 39mm |
75mm |
|
39 |
39 ... 45mm |
75mm |
|
45 |
45 ... 51mm |
90mm |
|
51 |
51 ... 57mm |
90mm |
|
57 |
57 ... 63mm |
100mm |
|
63 |
63 ... 69mm |
110mm |
|
69 |
69 ... 74mm |
110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• UC control system
• Position limit device
