Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Hose Crimping Machine Industrial Hose Crimper Crimp Hydraulic Fittings
Product Overview
LARGE HYDRAULIC HOSE CRIMPING MACHINE 3 INCH - P150
Description

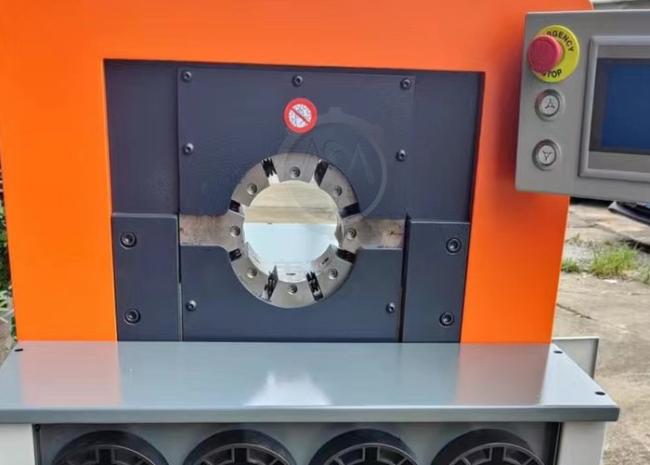

MS-P150 pipe pressing machine is designed for hydraulic hose crimping and fabricating from 1/4 inch to 3 inch. The crimping head is thinner compared to traditional designs, allowing 90-degree fittings to be easily inserted and removed during crimping operations.
This hydraulic hose crimper features dies with vertical movement for easy positioning. Die sets can be quickly changed and installed using the quick-change tool from the die sets rack, significantly improving crimping production efficiency.
The pressing hose machine incorporates CNC control for intelligent and smart operation.
Advantages
- High quality spare parts enable stable performance for hose crimping
- Emergency stop device ensures safe hydraulic hose crimping work
- Big and double use foot pedal provides convenient operation
- Low noise level for more comfortable working environment
Technical Data
| Model | MS-P150 Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 780 (T) |
| Hose Size | 1/4 - 3 (inch) 6 Spiral |
| Max. Opening | 61 (mm) |
| Die Sets | 14 |
| Die Set Type | P150 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 380 (V) Three Phase |
| Motor Power | 3.75 (KW) |
| Length | 720 (mm) |
| Width | 970 (mm) |
| Height | 1600 (mm) |
| Weight | 1020 (KG) |
P150 Hydraulic Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6 * | 6 ... 8mm | 55mm |
| 8 * | 8 ... 10mm | 55mm |
| 10 * | 10 ... 12mm | 55mm |
| 12 * | 12 ... 14mm | 55mm |
| 14 | 14 ... 16mm | 55mm |
| 16 | 16 ... 19mm | 55mm |
| 19 | 19 ... 22mm | 55mm |
| 22 | 22 ... 26mm | 70mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 34mm | 70mm |
| 34 | 34 ... 39mm | 75mm |
| 39 | 39 ... 45mm | 75mm |
| 45 | 45 ... 51mm | 90mm |
| 51 | 51 ... 57mm | 90mm |
| 57 | 57 ... 63mm | 100mm |
| 63 | 63 ... 69mm | 110mm |
| 69 | 69 ... 74mm | 110mm |
| 74 | 74 ... 80mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
- " * " indicates non-standard mold
- Crimping range is based on standard mold
- Customized die sets with different shapes and sizes are available
- Customized voltage options: 110V, 208V, 220V, 240V, 415V are available
Applications of P150 Hose Pressing Machine
P150 hose crimper machine is suitable for various applications including hydraulic hose fitting assembly fabricating, industrial pipe and cable pressing, wires and ropes swaging, steel tube crimping, automotive components jointing, and cable transfer work in marine environments.
