24V Mobile Hydraulic Hose Crimping Machine with 280T Crimping Force for High Pressure Hose Assembly
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description

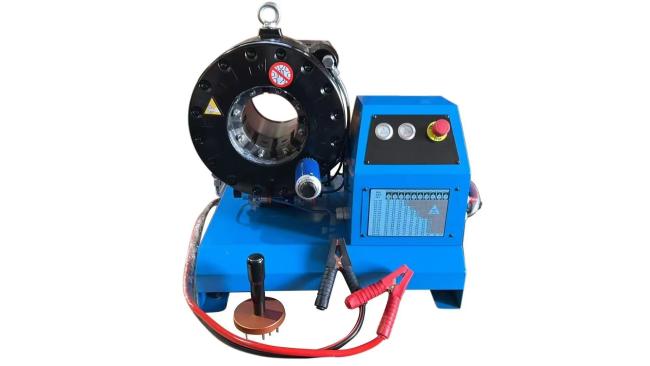

24V Hydraulic Hose Crimping Machine MS-P32CS
The MS-P32CS cable crimping machine is a specialized hydraulic hose crimper powered by a 24V vehicle motor, making it the ideal solution for on-site crimping operations with mobile service vehicles.
Main Features
- Mobile vehicle operation enables on-site crimping capabilities
- High-quality components with extensive crimping range
- Rapid crimping and opening cycles for high productivity
Technical Specifications
| Model | MS-P32CS Hydraulic Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 280 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 24 (V) |
| Motor Power | 2.2 (KW) |
| Length | 630 (mm) |
| Width | 540 (mm) |
| Height | 420 (mm) |
| Weight | 150 (KG) without oil |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 76mm | 110 |
| 74* | 74 - 80mm | 110 |
| 78* | 78 - 87mm | 110 |
Note:
• "*" indicates non-standard die sets
• Customized die sets are available
• 12V voltage option available
• "*" indicates non-standard die sets
• Customized die sets are available
• 12V voltage option available
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
Double Bevel Crimping Die Base
One-piece oil cylinder with double bevel die base provides high accuracy and superior crimping force
High Hardness Die Sets
13 die sets for hose sizes from 1/4 to 2 inch with high pressure capability
Precision Micrometer Control
High precision micrometer with excellent stability for easy diameter setting and large scale measurement
Premium Raw Steel Materials
Applications
Suitable for hydraulic high pressure oil rubber hose assembly manufacturing, low pressure water or air pipe pressing, steel tube and iron tube swaging, wire rope and cable pressing, lock device production, and various industrial applications.
