Hydraulic Hose Crimping Machine P32 with 650T Crimping Force 13 Die Sets and 31.5Mpa System 2.5 inches Pressure Hose Crimping Machine
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Product Overview

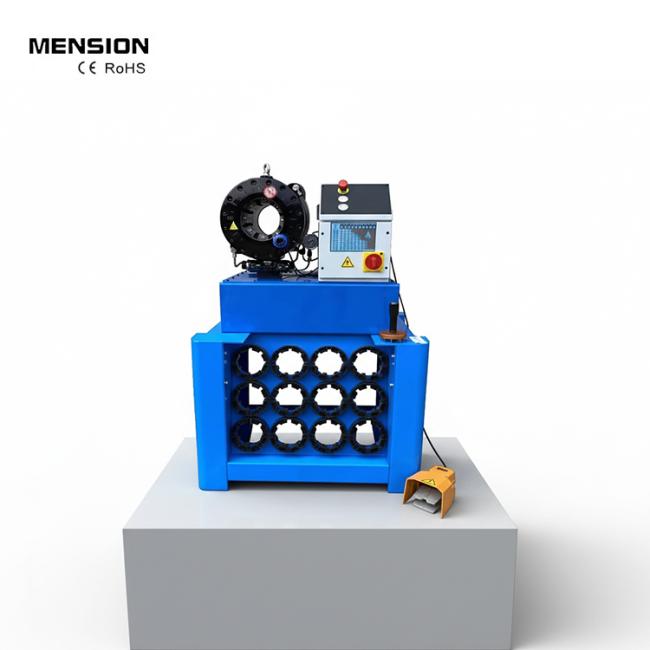

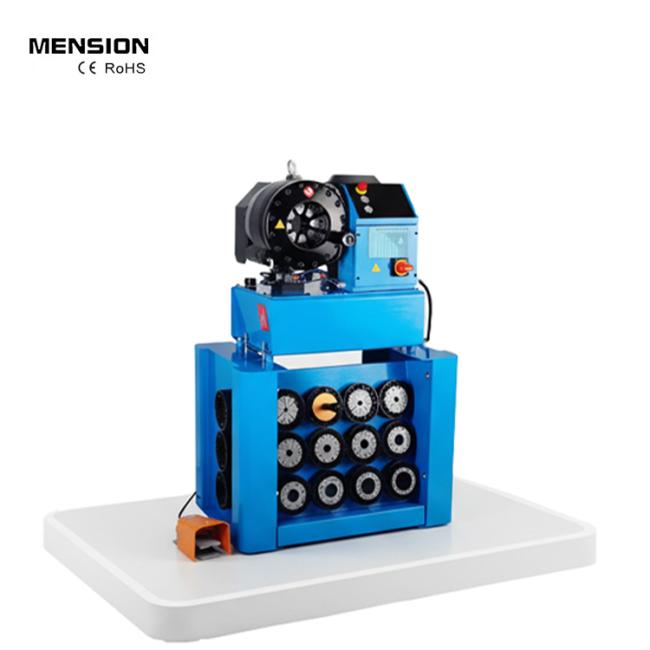

The MS-E130-I hose crimper features world-renowned MS control technology and is designed for easy maintenance. This versatile crimping machine is ideal for machinery repair workshops and hose assembly manufacturing facilities.
Key Advantages
- Japanese NACHI valve for superior crimping force and extended service life
- Quick-change tool system reduces die change time significantly
- Foot pedal operation frees both hands to maximize efficiency
Technical Specifications
| Model | MS-E130-I Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
* Non-standard die sets
Customized die sets available upon request
Special voltage options: 110V, 208V, 240V, 415V

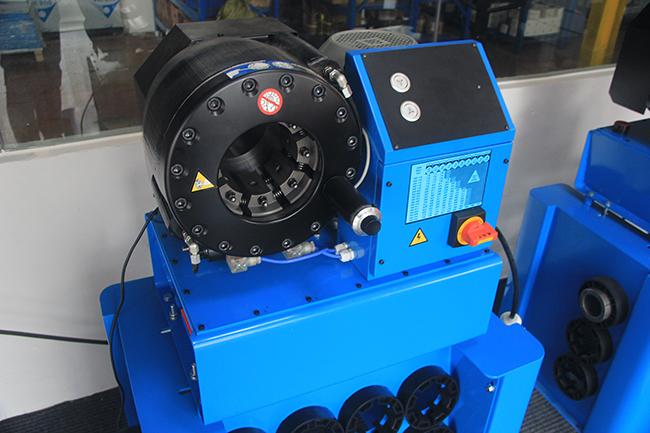

Compact Structure
Lightweight and compact design for easy mobility and placement

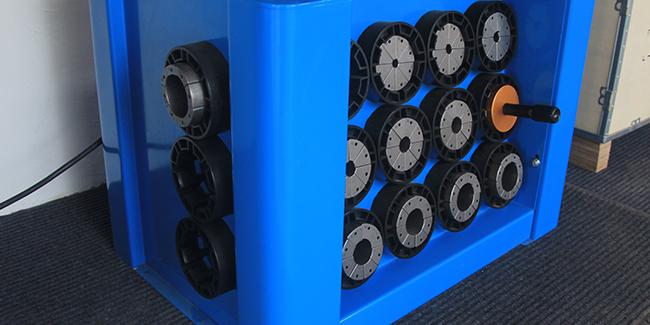

CR12MOV Die Sets
13 die sets with hardness 59-63HRC, featuring quick-change tool system for enhanced productivity

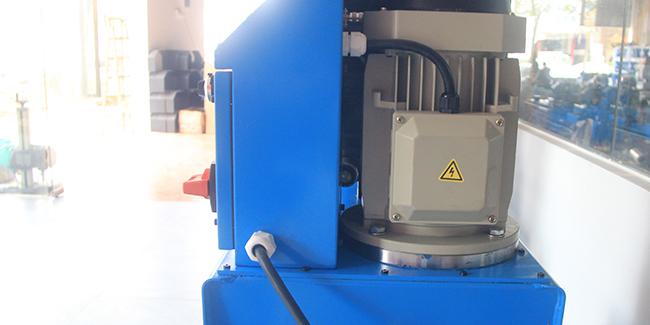

Copper Wire Motor
Copper wire with aluminum shell provides superior heat dissipation, ensuring no overheating even during extended operation
Advanced MS Control
Stable performance with easy maintenance and high precision control system

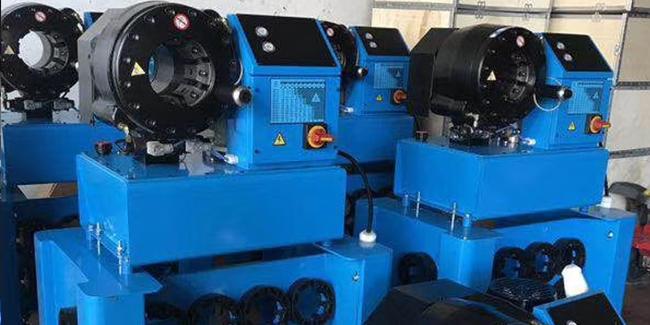

Fast Delivery
Delivery within 7 days after payment confirmation
Applications
The E130-I is a high-performance hose crimping machine capable of crimping high-pressure stainless steel braided hydraulic rubber hose, industrial hose, cables and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
