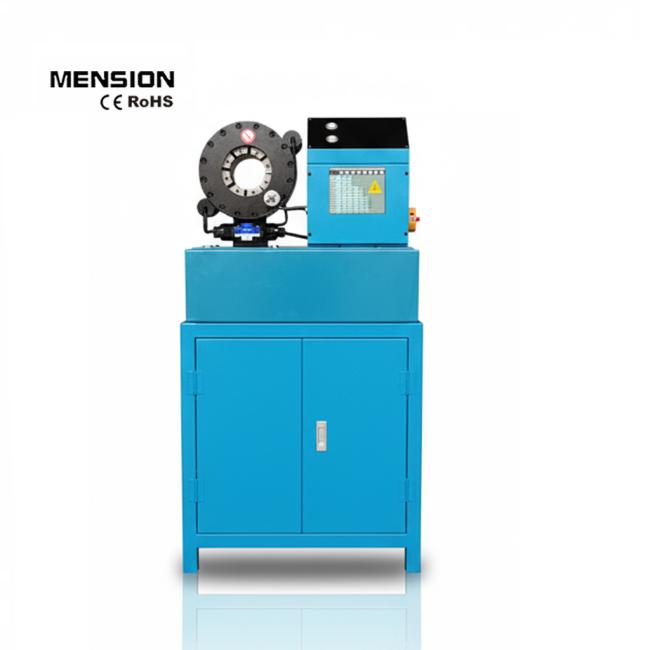

Hydraulic AC Hose Crimping Tool Gates P20 Hydraulic Hose Crimper Hose Clamp Crimping Tool E38
The P20 hose crimper processes hoses ranging from 1/4 inch to 2 inches in diameter, delivering outstanding versatility for the automotive and hydraulic industries. This machine guarantees precise, professional crimping of hose fittings to create secure, leak‑proof and long‑lasting connections. It comes with interchangeable dies for multiple hose dimensions, fully adjustable pressure and depth controls, and a reliable hydraulic drive system for consistent, high‑performance crimping.
- Crimping Range: Handles hoses from 1/4 inch to 2 inches diameter for versatile applications
- Interchangeable Dies: Multiple die sets accommodate different hose sizes and fitting types
- Adjustable Settings: Precise control over crimping pressure and depth for consistent results
- Hydraulic Power: Provides substantial force for effective and reliable crimping operations
- Wide Application Compatibility:Covers almost all commonly used hydraulic and automotive hoses, reducing the need for multiple machines.
- Superior Crimping Precision:Ensures tight, reliable connections with minimal risk of leaks, cracks or premature failure.
- High Operational Efficiency:Hydraulic power and quick die changes speed up production and cut down setup time.
- Stable & Durable Performance:Robust construction and adjustable settings maintain consistent quality even under heavy daily use
| Model | P20 E38 Hose Crimper Pressing Machine |
| Crimping Range | 14 - 78 mm |
| Crimping Force | 640 T |
| Hose Size | 1/4 - 2.0 inch |
| Max. Opening | 31 mm |
| Die Sets | 10 |
| Die Set Type | MS |
| System Pressure | 31.5 Mpa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | 220 V |
| Motor Power | 3 KW |
| Length | 630 mm |
| Width | 450 mm |
| Height | 1360 mm |
| Weight | 310 KG |

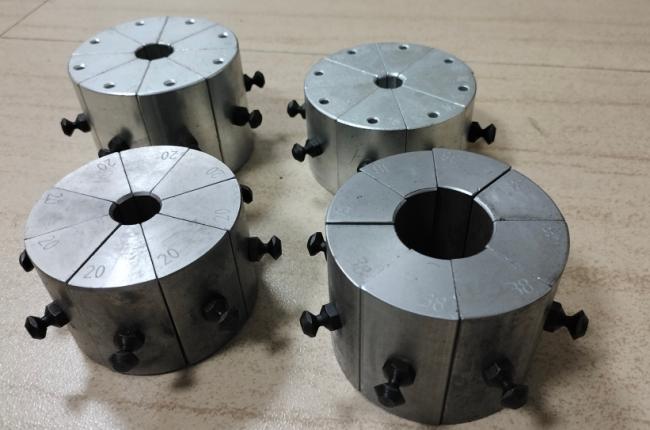

| Die No. | Crimping Range | Length |
|---|---|---|
| 14 | 14 ... 16mm | 60mm |
| 16 | 16 ... 19mm | 60mm |
| 20 | 20 ... 22mm | 60mm |
| 22 | 22 ... 26mm | 60mm |
| 26 | 26 ... 30mm | 60mm |
| 30 | 30 ... 34mm | 70mm |
| 34 | 34 ... 39mm | 70mm |
| 39 | 39 ... 45mm | 70mm |
| 45 | 45 ... 51mm | 70mm |
| 51 | 51 ... 57mm | 80mm |
| 54 | 54 ... 64mm | 80mm |
| 64 | 64 ... 78mm | 80mm |
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
- UC control system

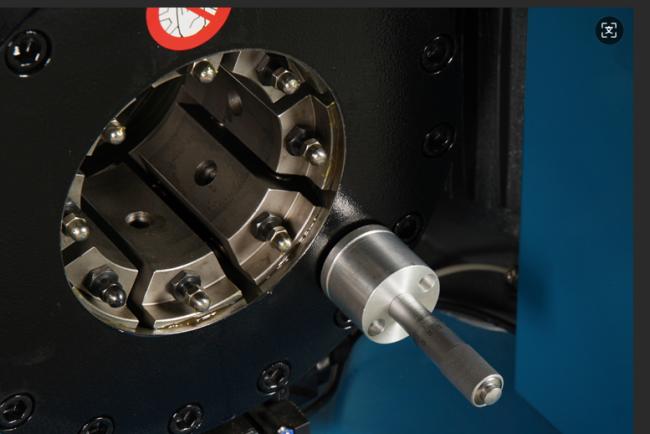

Position limit device
Top grade materials

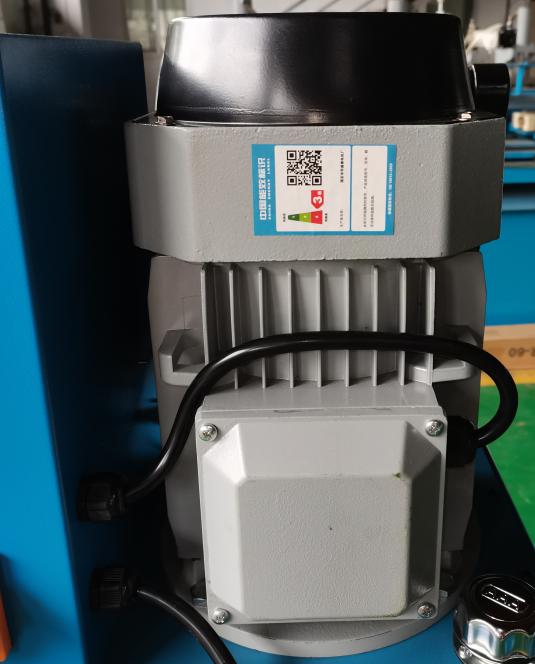

Top Grade Motor

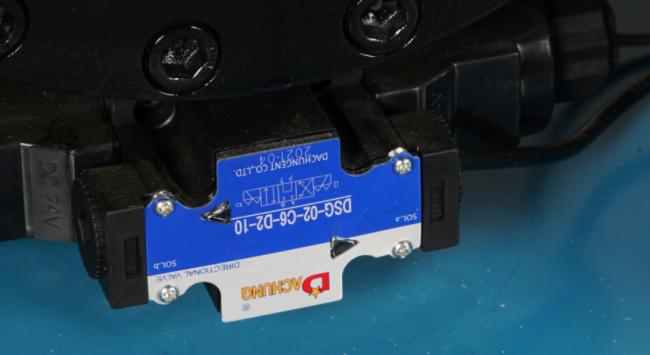

Reliable solenoid valve
Premium mold
The P20 hydraulic hose crimping machine is designed for various industrial applications including hydraulic systems, automotive components, and manufacturing processes requiring secure hose connections.
