DX68 Hydraulic Hose Crimper with 640T Crimping Force 14-87mm Range and 10 Die Sets

Price Negotiable

Price: Contact Us

MOQ: 1 Set

Delivery Time: 2 - 7 Working Days

Brand: MENSION

Product Description

DX68 Cable Crimping Machine Hydraulic Hose Crimper Machine Press Hose

High Accurate DX68 Cable Crimping Machine E38 With Big Hydraulic Power Press Hose

HOSE CRIMPING PRESS MACHINE MS-E38

DESCRIPTION

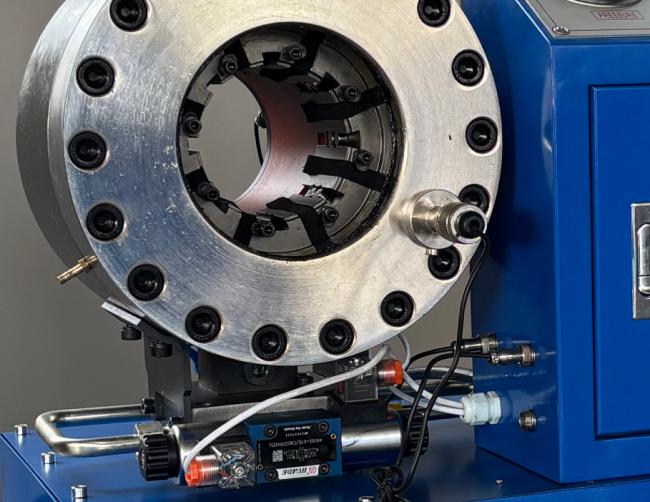

MS-E38 hose crimper machine is an accurate pressing tool with high productivity. It is offered with 10 free dies as standard and capable of swaging high pressure hose from 6mm up to 51mm. It is a bench top model that can be placed on any rack to achieve an ergonomic height for operator's work.

MAIN FEATURES

Flexibility for numerous materials
Reliability with high quality
CE and RoHS certified
Low noise level

TECHNICAL DATA

Model	MS-E38 Crimping Hose Machine
Crimping Range	14 - 87 (mm)
Crimping Force	640 (T)
Hose Size	1/4 - 2 (inch) 4SH
Max. Opening	31 (mm)
Die Sets	10
Die Set Type	38
System Pressure	31.5 (Mpa)

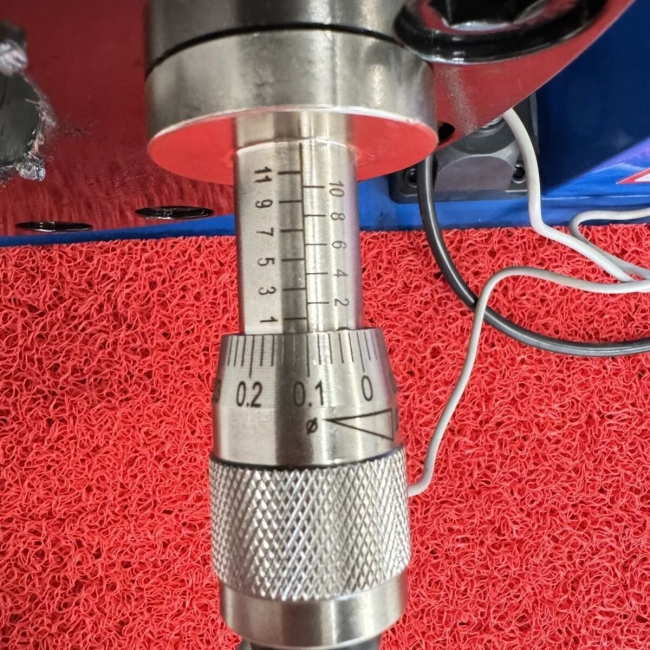

Accuracy	0.01 (mm)

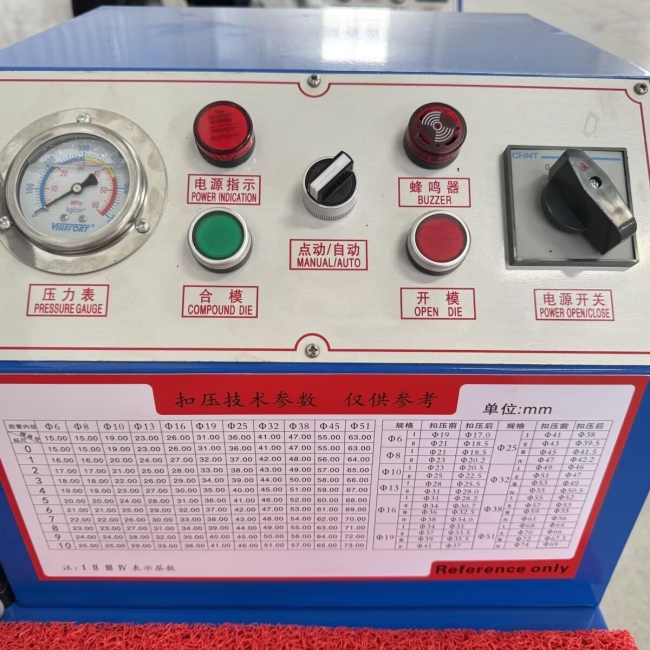

Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	4 (KW)
Length	630 (mm)
Width	450 (mm)
Height	600 (mm)
Weight	200 (KG)
Hydraulic Oil	50 (L)

38 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	35
8*	8 - 10mm	35
10*	10 - 12mm	35
12*	12 - 14mm	35
14	14 - 16mm	60
16	16 - 20mm	60
20	20 - 22mm	60
22	22 - 26mm	60
26	26 - 30mm	70
30	30 - 38mm	70
38	38 - 46mm	70
46	46 - 54mm	80
54	54 - 64mm	80
64	64 - 69mm	80
69*	69 - 76mm	100
