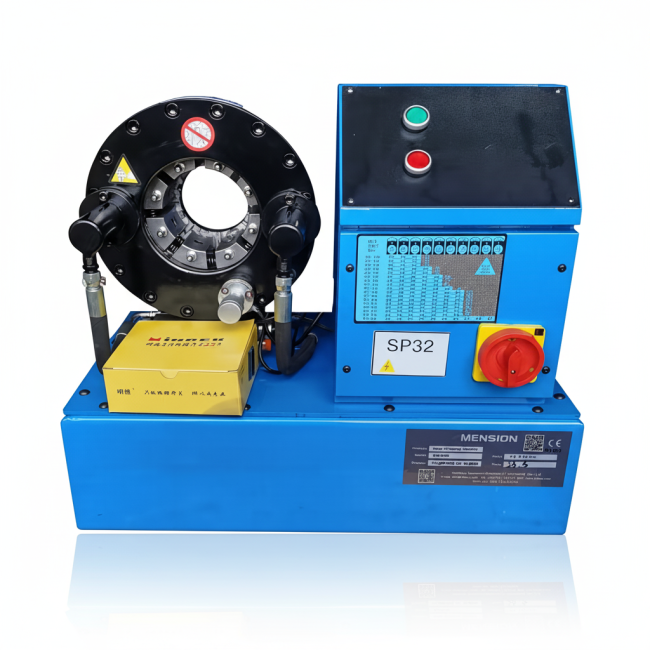

MS‑SP32 Portable Hydraulic Hose Crimping Machine with 500T Crimping Force for 2.0 Inch Hose and 10 Die Sets
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Portable Hydraulic Hose Crimping Tool - Two Inches Hydraulic Hose Maker Machine SP32
Product Overview
The MS-P32 is a benchtop hose crimping machine, a basic model. This crimping machine is designed for crimping 1/4 inch to 2-1/2 inch high-pressure hydraulic hoses and flaring industrial pipes up to 3 inches in diameter. It can crimp conduits, air conditioning hoses, brake hoses, and stainless steel braided hoses. The crimping operation is convenient, requiring only two buttons to complete the process.
Key Advantages
- Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
- A simple operating system enables intuitive operation and a superior user experience.
- Superior motor performance delivers exceptional power.
- Ultra-High Precision Crimping Diameter Control for Reliable Leak-Proof Hose Connections
- Big crimping force and large opening capacity
- Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
- Full CE & ISO Certification, Compliant with Global Industrial Quality Standards
Technical Specifications
| Model | MS-SP32 Portable Hydraulic Hose Crimper |
| Crimping Range | 14 - 78(mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2. (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | SP32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3/4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
P32 Series Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
- * indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options available: 110V, 208V, 240V, 415V
Forged from top-grade materials
Precision adjustment and control
High-quality parts assembly

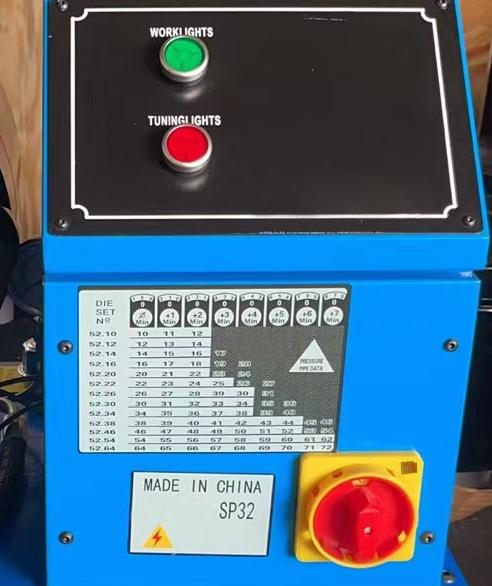

Convenient control switch
Top-of-the-line powertrain

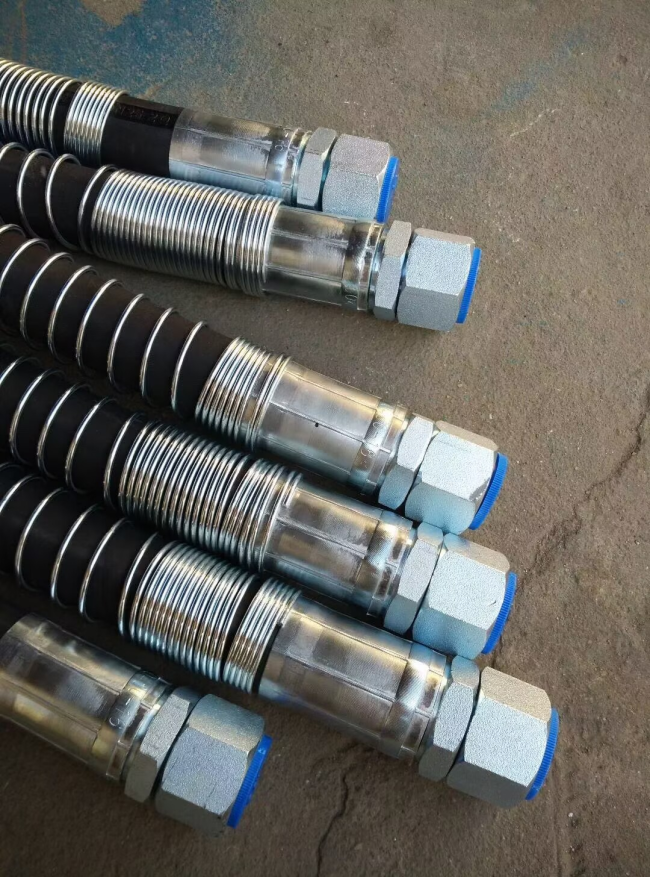

High-quality crimping effect
