DX68 MS-51 500T Bench-Top Hydraulic Hose Crimping Machine with 6-51mm Crimping Range
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
DX68 Cable Crimping Machine Hydraulic Hose Crimper Machine Press Hose
High Accurate DX68 Cable Crimping Machine MS-51 With Big Hydraulic Power Press Hose

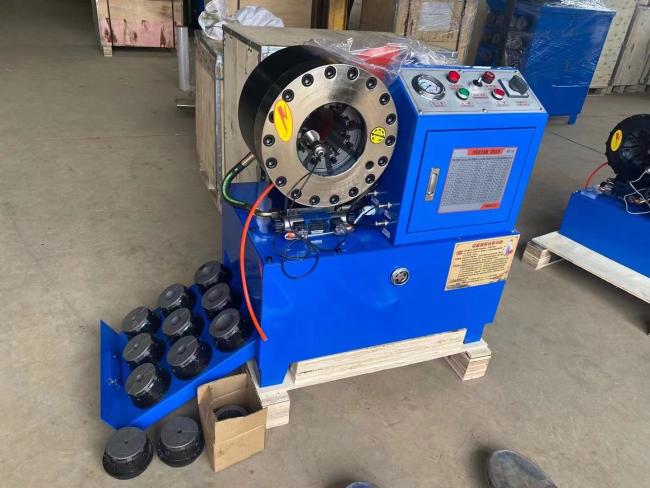

HOSE CRIMPING PRESS MACHINE MS-51
DESCRIPTION
The MS-51 is a heavy-duty, bench-top hydraulic hose crimping machine designed for professional workshops. It crimps hydraulic hoses and fittings from 6–51mm (1/4″–2″) with precision and consistency. Built on the proven DX68 design, the MS-51 delivers a powerful 500-ton crimping force to securely attach fittings on high-pressure braided hoses. Its rugged forged-steel crimping cylinder and reinforced structure ensure durability for long production runs. Despite its strength, the MS-51 is compact enough to mount on any standard workbench, optimizing factory floor ergonomics and saving space.
MAIN FEATURES
- 500T ultra-powerful bench-top crimping force
- Covers (1/4″–2″) hose sizes with 10 dies
- Fast quick-change die system for minimal downtime
- Dual-mode control with hands-free foot pedal
- CE- and RoHS-certified for safe, quiet operation
- Forged steel cylinder and durable components
- Compact bench design for ergonomic workflow
TECHNICAL DATA
| Model | MS-51 Crimping Hose Machine |
|---|---|
| Crimping Range | 15 - 76 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
38 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
1) Customized die sets are available with different size or shape
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are available
3) Foot pedal is available to make the hands free
4) * for non standard die sets
Top-tier materials manufacturing

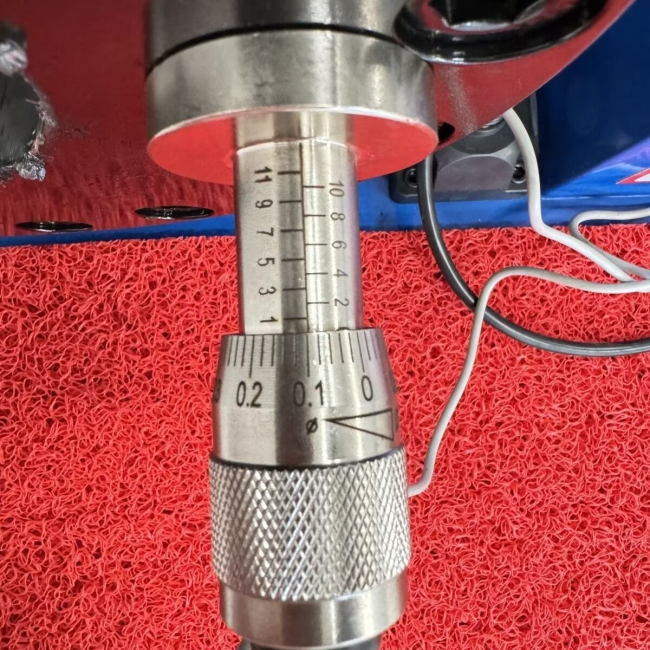

High-precision regulator

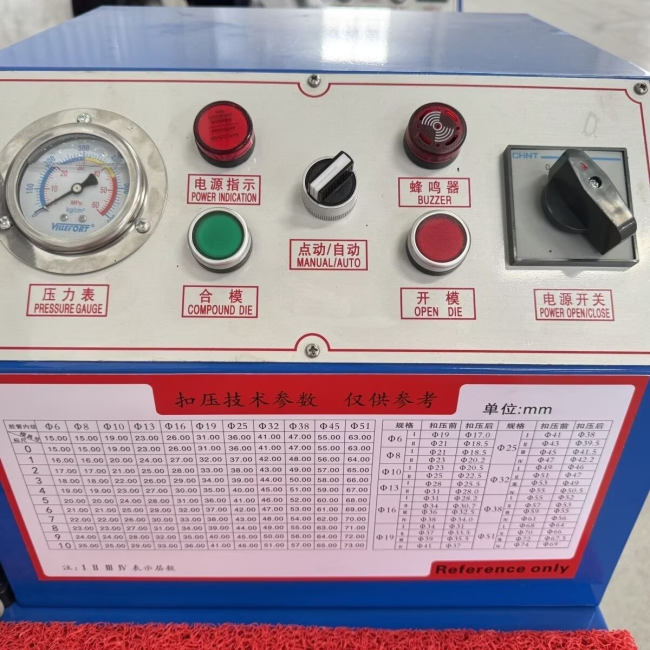

High-precision manual/automatic operation panel

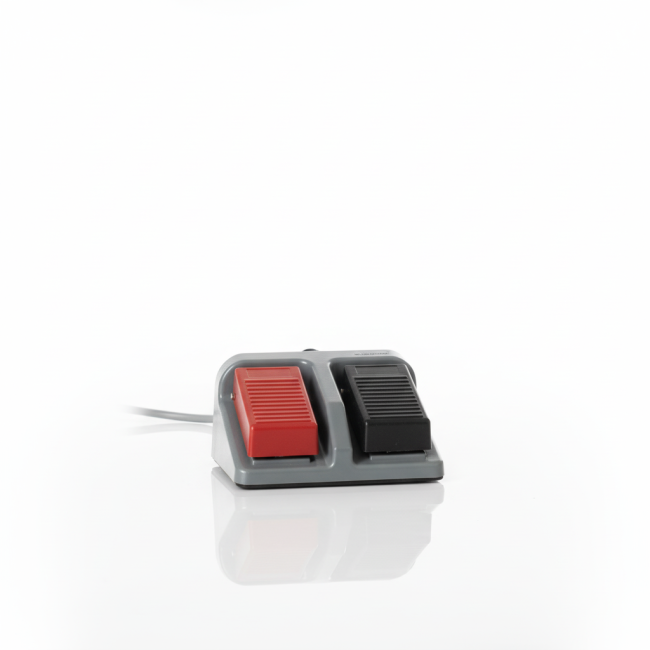

Equipped with a foot switch, it frees up your hands and improves work efficiency.

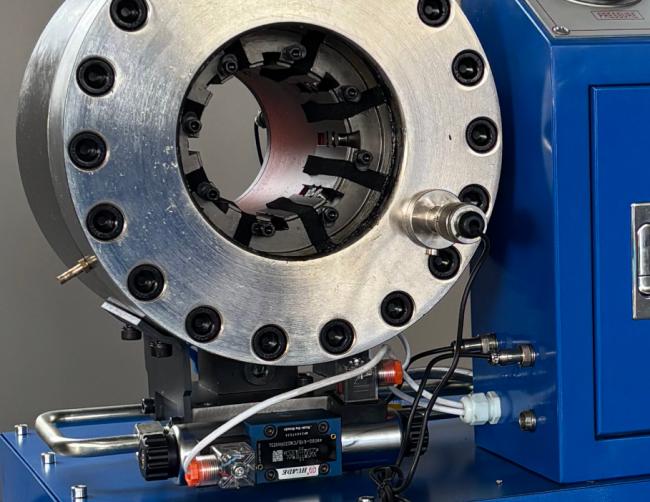

High-quality high-strength steel molds
APPLICATIONS FOR HOSE ASSEMBLY MAKING
