Industrial 2-Inch Hydraulic Hose Crimping Machine with 10 Die Sets for Workshop & Mobile Use
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
M51 DX68Cable Crimping Machine Hydraulic Hose Crimper Machine Press Hose
High Accurate MS-51 DX68 Cable Crimping Machine E38 With Big Hydraulic Power Press Hose
HOSE CRIMPING PRESS MACHINE MS-51 DX68
DESCRIPTION
MS-51 Hose Crimper Machine is a professional-grade, high-precision hydraulic pressing tool engineered for high-volume, reliable hose assembly in industrial and commercial scenarios. Built for consistent accuracy and exceptional productivity, this machine delivers flawless, repeatable swaging for high-pressure hydraulic hoses with an inner diameter ranging from 6mm up to 51mm (1/4" to 2"), making it the ideal solution for hydraulic repair workshops, construction equipment maintenance, agricultural machinery service, and industrial hose assembly lines.
MAIN FEATURES
- Flexibility for numerous materials
- Industrial-Grade Precision Crimping
- Reliability with high quality
- Quick crimping and retracted process
- CE and RoHS certified
- Low noise level
- Versatile Application
TECHNICAL DATA
| Model | MS-51 Crimping Hose Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
M-51 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
- Customized die sets are available with different size or shape
- Special voltage such as 110V, 208V, 240V, 415V (60HZ) are available
- Foot pedal is available to make the hands free
- * for non standard die sets

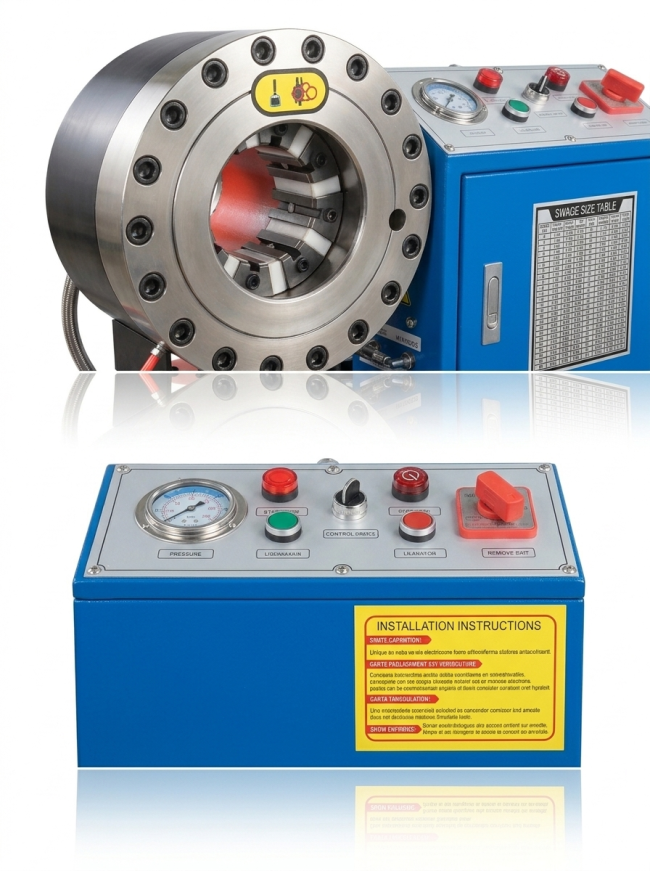

Upgrade your workshop with our Professional Hydraulic Hose Crimping Machine. Designed for durability and precision, this machine handles hoses from 1/4" up to 2" with ease. The intuitive control panel, complete with a built-in swage size reference table, makes operation error-free, even for beginners. Whether you are repairing agricultural machinery or maintaining a fleet of excavators, this crimper delivers factory-grade results every time. Includes a full set of dies stored conveniently in the built-in rack.

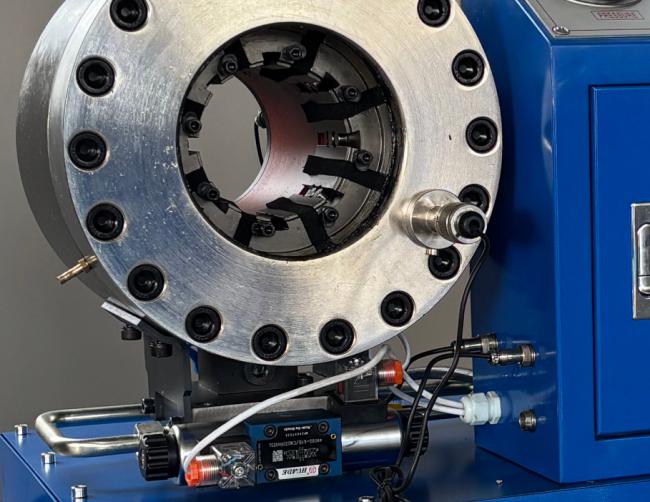

Forged from Premium Materials

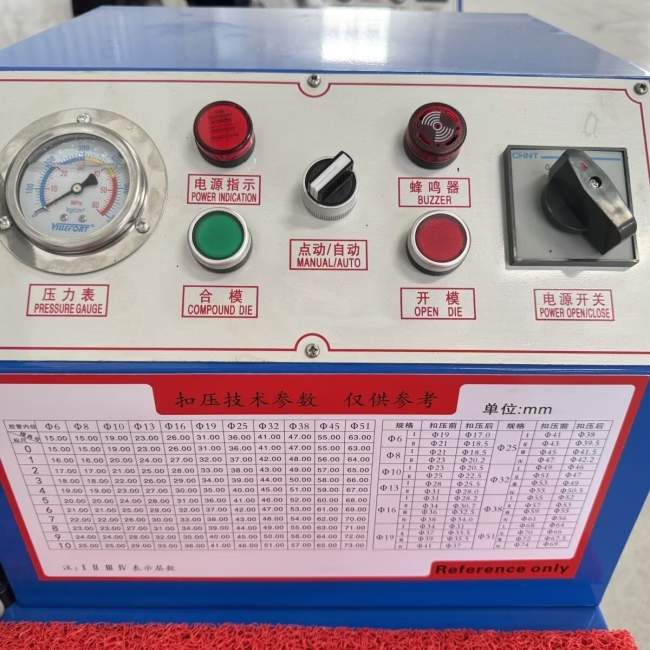

Manual/Automatic Control Panel

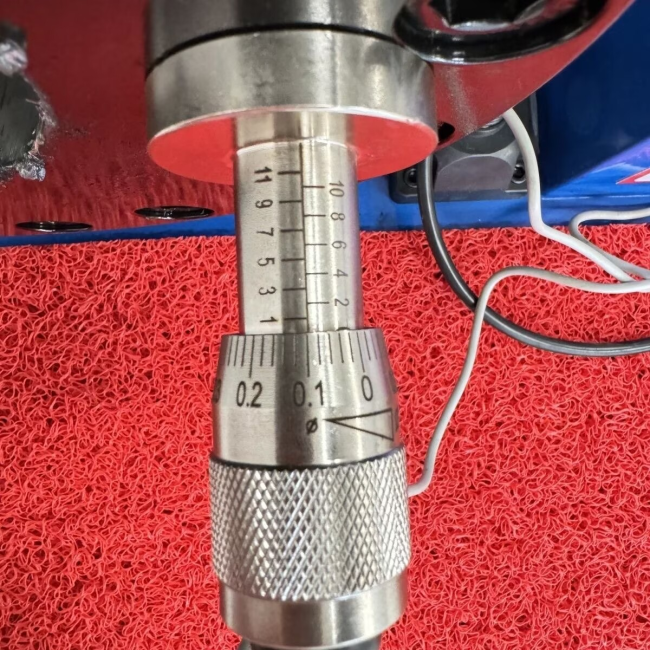

High-Precision Adjustment

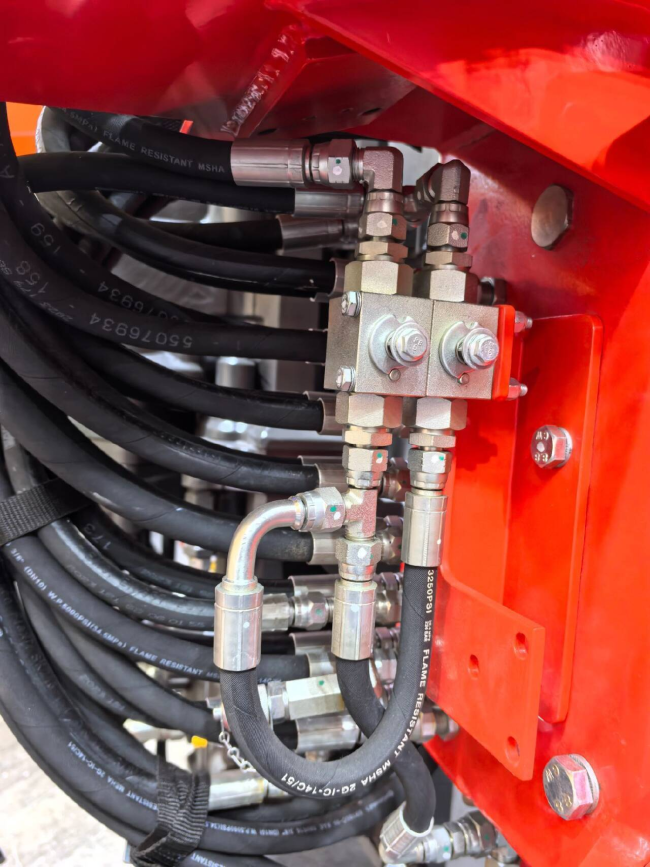

High-Quality Crimping Results
