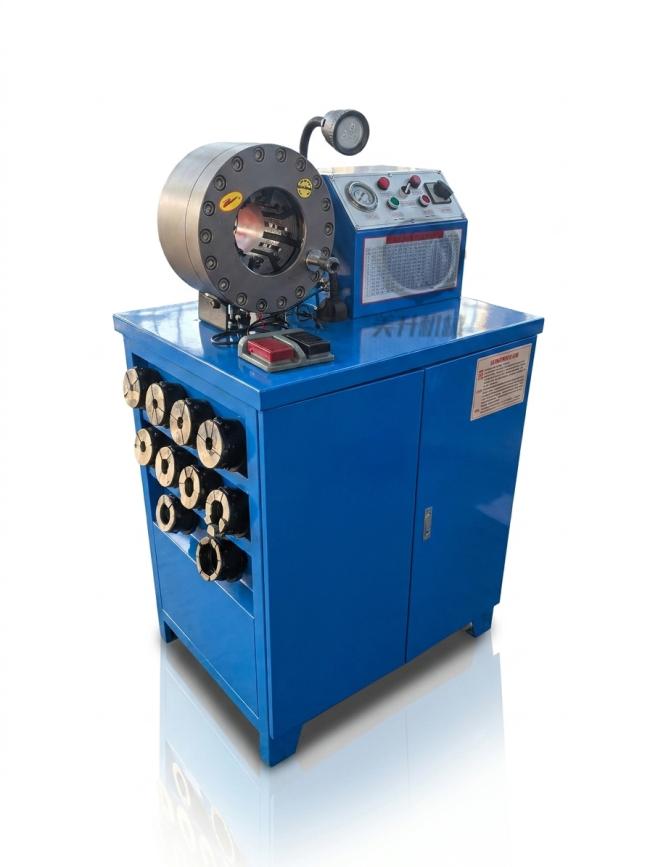

Ms-51l Ce Certified Industrial Brake Hose Crimping Machine With 500t Force For 1/4"-2" Hydraulic Hoses
The MS-51L brake hose crimping machine is a high-performance, industrial-grade hydraulic crimping solution engineered for dual-scene applications: it perfectly fits the fabrication of automotive low-pressure brake lines, as well as the assembly of high-pressure hydraulic hoses for excavators, construction machinery and other heavy-duty hydraulic equipment. With a robust 500T crimping force and wide material compatibility, this hydraulic hose crimper delivers consistent, leak-proof crimping results for hoses ranging from 1/4" to 2" (6-51mm), making it an ideal core equipment for auto repair shops, hydraulic service centers, hose assembly manufacturers, and heavy machinery maintenance workshops. Built with precision-machined core components and a heavy-duty reinforced frame, it balances high productivity, micron-level accuracy, and long-term reliable performance in demanding industrial operating environments.
- Forged steel making the oil cylinder, high stability

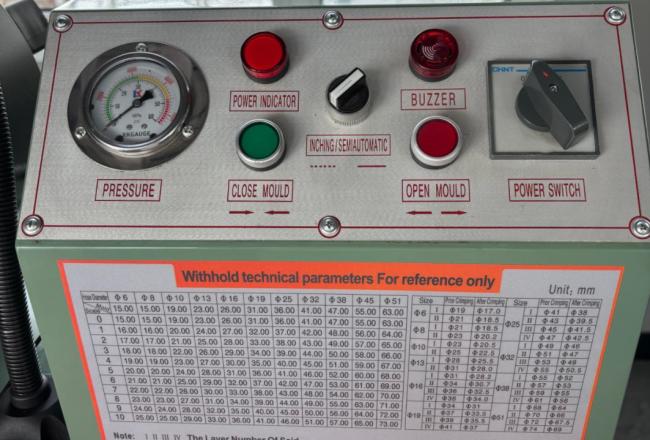

- With foot pedal control, freeing up your hands and improving work efficiency.
- Free change from semi-automatic to automatic mode
- Easy for daily maintenance
- Equipped with adjustable scale, micron-level precision pressing control
- High-efficiency and energy-saving hydraulic system with fast clamping speed
- Fully compliant with CE and RoHS international certifications.
| Model | MS-51L Brake Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 800 (mm) |
| Width | 640 (mm) |
| Height | 1300 (mm) |
| Weight | 320 (KG) |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
* for non standard die sets
Customized die sets are available
Special voltage 110V, 208V, 240V, 415V are available
- Quick Change Tool
- UC control
- Color customization is supported.
