SP32 Industrial Electric Hydraulic Hose Crimping Machine with 10 Dies Set
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description

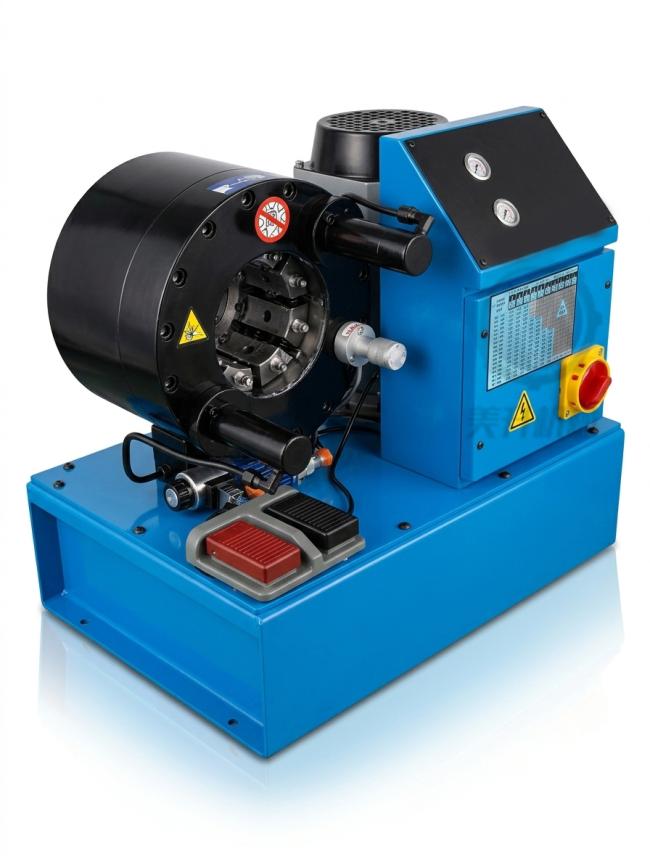

SP32 Automatic Hydraulic Hose Crimper Pressing Machine for Excavator Repair Shop
The MS-P32 is a benchtop hose crimping machine designed for crimping 1/4 inch to 2-1/2 inch high-pressure hydraulic hoses and flaring industrial pipes up to 3 inches in diameter. It can crimp conduits, air conditioning hoses, brake hoses, and stainless steel braided hoses. The crimping operation is convenient, requiring only two buttons to complete the process.
Key Advantages
- Ultra-Wide Hose Size & Type Compatibility for Diverse Industrial Application Scenarios
- Simple operating system enables intuitive operation and superior user experience
- Superior motor performance delivers exceptional power
- Ultra-High Precision Crimping Diameter Control for Reliable Leak-Proof Hose Connections
- Big crimping force and large opening capacity
- Full CE Certification, Compliant with Global Industrial Quality Standards
- Dual Control with Foot Pedal Switch
Technical Specifications
| Model | SP32 Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 78 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2.0 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | SP32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V)/220V |
| Motor Power | 3KW/4KW |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
P32 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
* for non standard die sets
Customized die sets are available
Special voltage 110V, 208V, 240V, 415V are available
Premium Construction Features
Top-grade materials
Equipped with a foot switch for hands-free operation
Top-of-the-line motor
Application Showcase

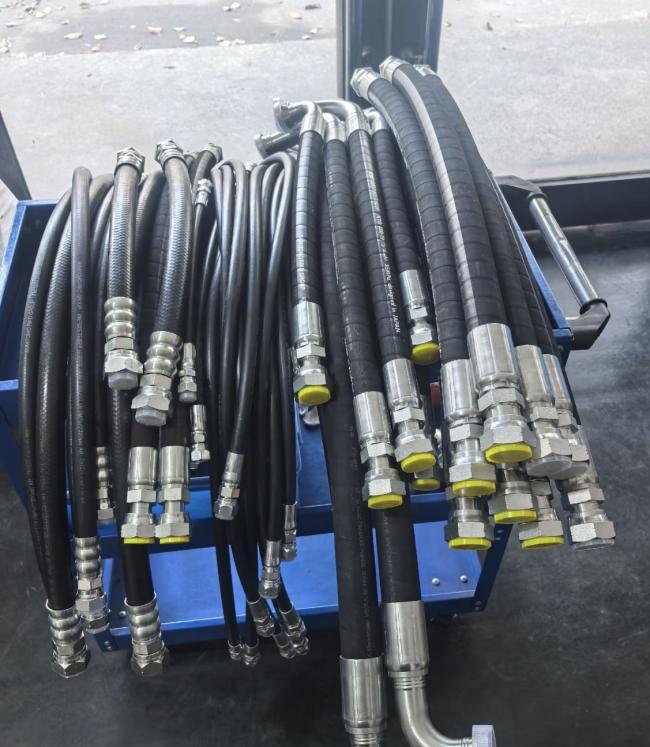

The P32NC is a high-configured hose crimping machine capable of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
