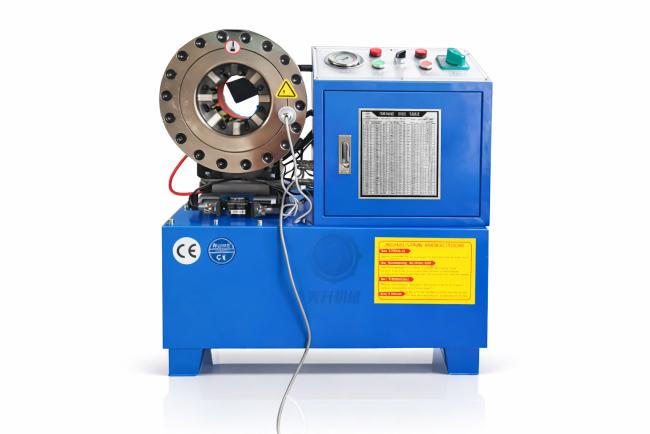

HOSE PRESSING MACHINE MS-51
DESCRIPTION
MS-51 pipe pressing machine is the most suitable choice for single piece hydraulic hose assembly making for its low cost and high productivity. It is with 10 standard die sets for free, the molds are with high hardness, this crimper is capable of crimping high pressure stainless steel 4 wire spiraled hose from 1/4 to 2 inch and for industrial hose up to 3 inch.
MAIN FEATURES
► High hardness hydraulic crimping head, one piece design
► Multi use operate panel, two operate mode with automatic crimping
► High precision dial, prevent tapering of hose assembly
► Foot pedal switch as standard configuration to make hands free
► Working light to help the user see clearly during dark light
TECHNICAL DATA
|
Model |
MS-51 Cable Pressing Machine |
|
Crimping Range |
14 - 87(mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) Mono - phase |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
820 (mm) |
|
Weight |
260 (KG) |
HOSE CRIMPER 51 DIE SETS
|
Die No. # |
Crimping Range |
Length |
|
6* |
6 ... 8mm |
35mm |
|
8* |
8 ... 10mm |
35mm |
|
10* |
10 ... 12mm |
35mm |
|
12* |
12 ... 15mm |
35mm |
|
15 |
15 ... 19mm |
60mm |
|
19 |
19 ... 23mm |
60mm |
|
23 |
23 ... 26mm |
60mm |
|
26 |
26...31mm |
60mm |
|
31 |
31 ... 36mm |
70mm |
|
36 |
36 ... 41mm |
70mm |
|
41 |
41 ... 47mm |
70mm |
|
47 |
47 ... 55mm |
80mm |
|
55 |
55 ... 63mm |
80mm |
|
63 |
63 ... 69mm |
80mm |
|
69* |
69 ... 76mm |
90mm |
NOTE
• " * " for non standard mold
• Customized molds are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
DETAILED SPARES

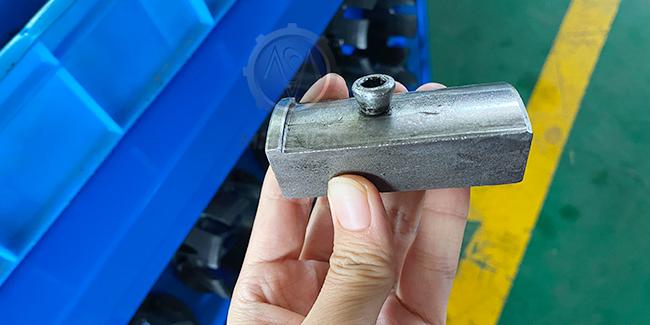

► 10 free mold with 40Cr material, high frequency processing, long service time

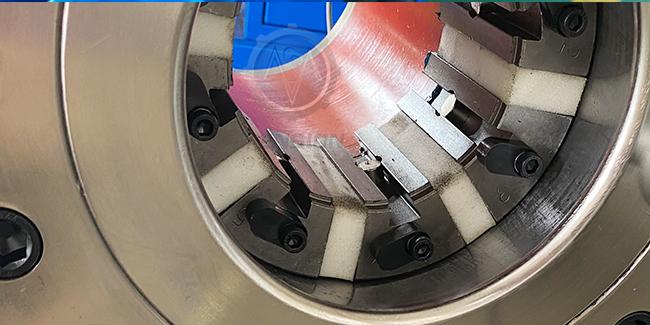

► Easy mold installing design, automatic lubricating

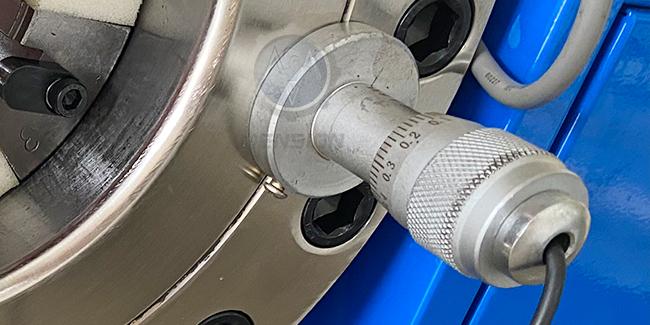

► Micrometer with high accuracy, comvenient to install

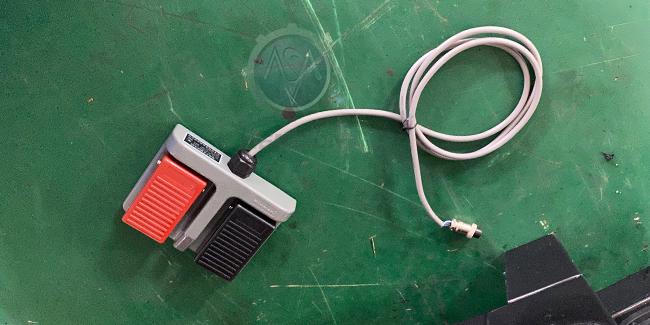

► Double functional foot pedal as standard spare parts

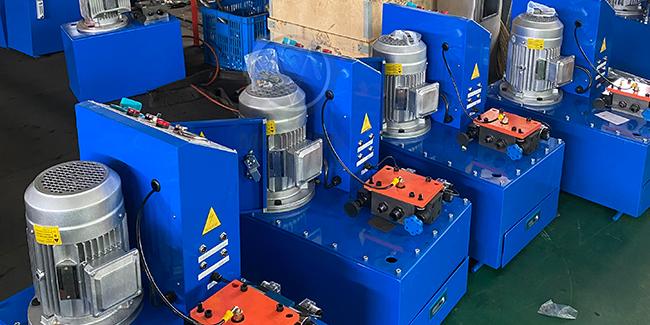

► Large quantity in stock, fast delivery time

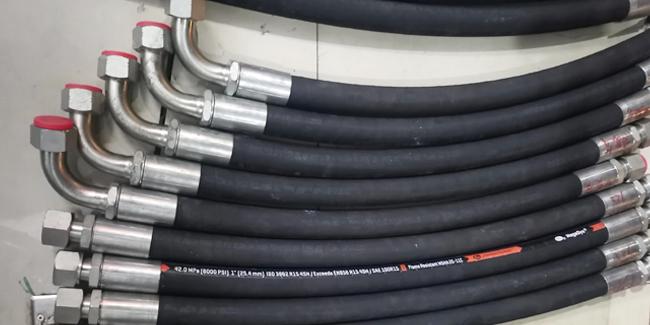

HOSE CRIMPING SAMPLES
