Portable Hydraulic Hose Crimper with 500T Crimping Force, 14-87mm Crimping Range, and 10 Die Sets
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Hose Crimping Tool Mobile Hose Crimper Hyd Hose Crimping Machine
PORTABLE HYDRAULIC HOSE CRIMPER MS-51
DESCRIPTION
MS-51 portable hydraulic hose crimper is a multifunctional tool. It can make not only hydraulic high pressure stainless steel braided hoses, but is also capable of crimping low pressure industrial hoses, air and water hoses, cables and wires, and ropes for hanging goods.
MAIN FEATURES
- Forged crimping head with high hardness and excellent anti-wear performance
- Double crimping mode selection based on different needs
- Foot pedal for hands-free operation during large size crimping
- Working lamp that can be positioned anywhere on the machine

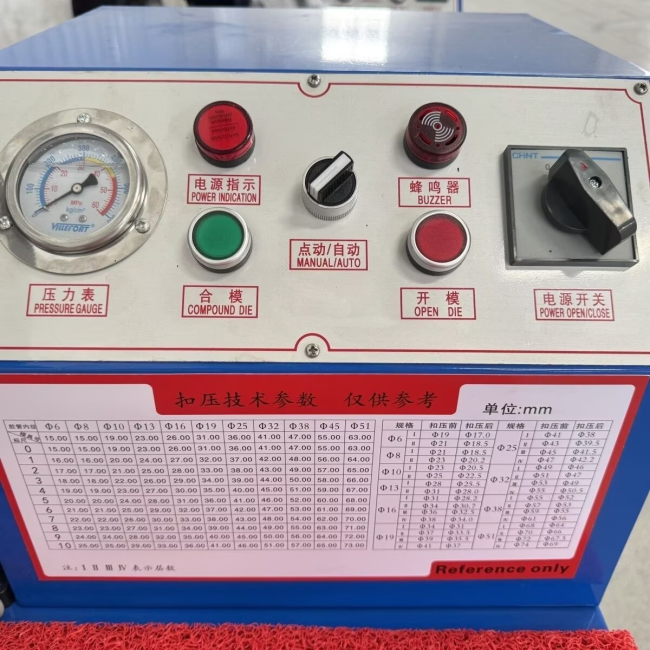

- Crimping diameter reference sheet for training new users
TECHNICAL DATA
| Model | MS-51 Portable Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 SERIES CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
- * indicates non-standard die sets
- Customized die sets are available
- Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL ACCESSORIES
- Quick Change Tool
- Quick Change Die Set Rack
