Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press

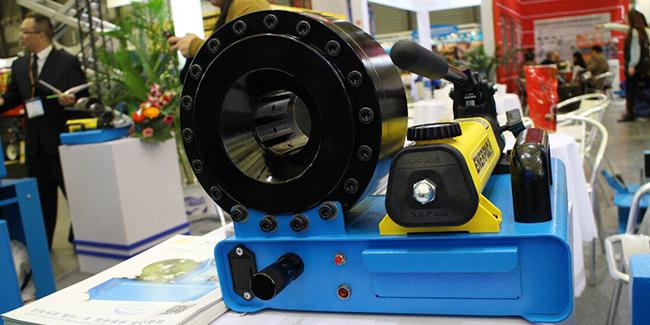

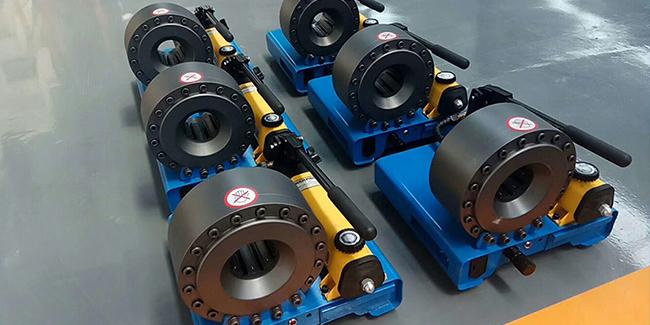

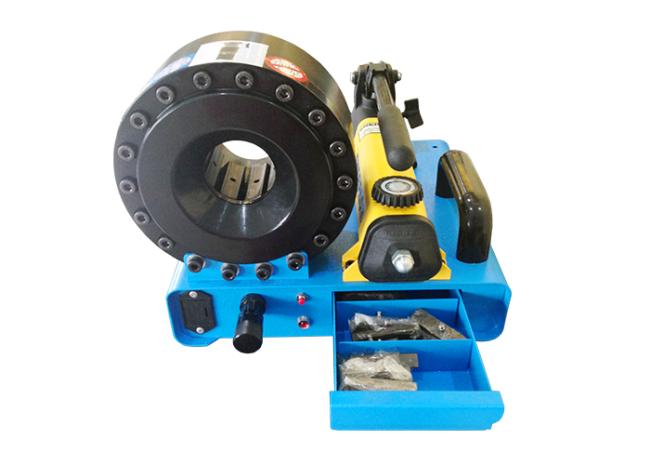

1 INCH HYDRAULIC HOSE CRIMPING MACHINE MS-P16HP
DESCRIPTION
MS-P16HP is a manual hose crimper with hand pump. It is the ideal choice for field service when repairs must be made on site. The light weight makes P16HP be easily carried to any place.
ADVANTAGES
1) Small size with light weight
2) World famous 'EMERPAC' hydraulic pump
3) High precision
4) Good stability
TECHNICAL DATA
| Model | P16HP Crimping Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20mm |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage |
Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 23mm | 55 |
| 23 | 23 - 27mm | 55 |
| 27 | 27 - 31mm | 55 |
| 31 | 31 - 35mm | 65 |
| 35 | 35 - 41mm | 65 |
NOTE
• * for non standard die sets;
• Customized die sets are available;
• Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC control
► LIGHT WEIGHT
32kg net weight, easy to move by hand

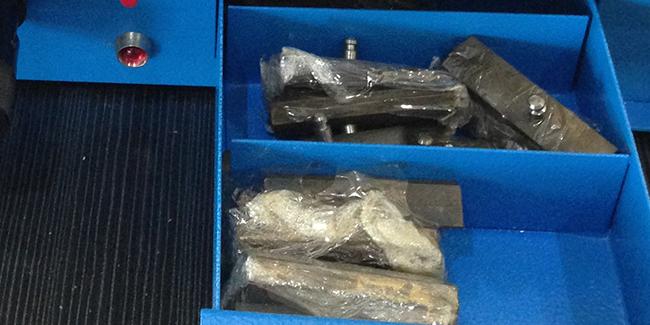

► 7 DIE SETS
Die sets with high hardness HRC59-63
► FAST DELIVERY TIME

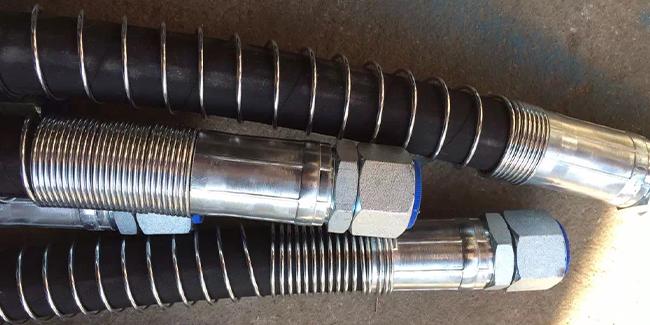

► APPLICATIONS
Poratble P16HP crimper can be used more flexible on machinery repair or movable hose assembly making.
