Used Hydraulic Hose Crimper with 150T Crimping Force 14-45mm Range and 31.5Mpa Pressure
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Used Hydraulic Hose Crimper AirHose Ferrule Crimping Tool Parker Enerpac Crimper
SERVICE HYDRAULIC HOSE CRIMPING MACHINE MS-P16HPU
Product Overview

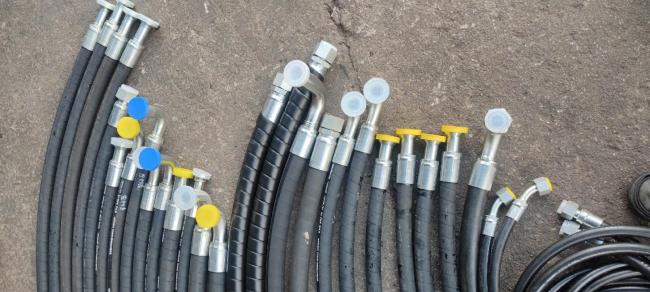

MS-P16HP hydraulic hose crimper machine can be used for high pressure rubber hose crimping, steel tube diameter reducing, wire rope pressing, cables crimping etc.
Key Advantages
- Big crimping capacity with small size
- High accuracy diameter control
- Forged cylinder, high hardness
- Die sets safe installing
Technical Specifications
| Model | P16HP Used Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |

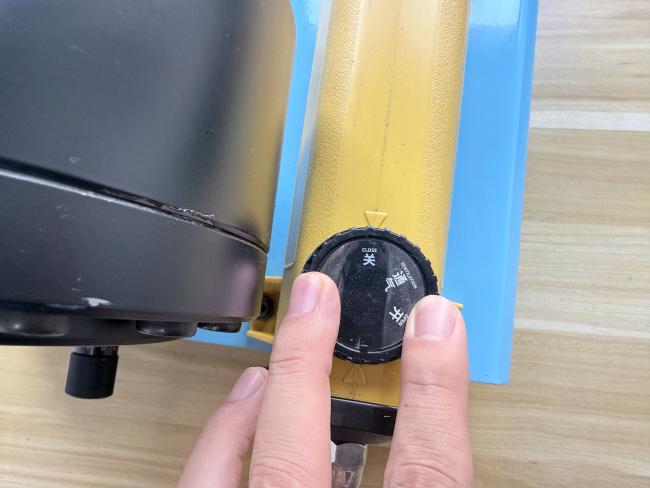

| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |

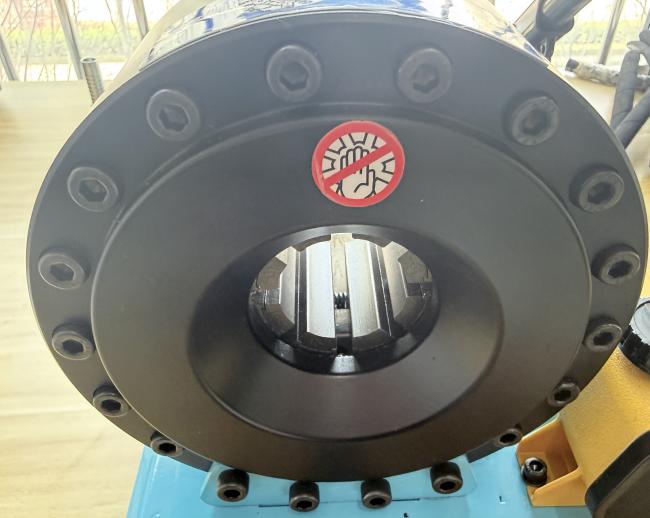

P16 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 23mm | 55 |
| 23 | 23 - 27mm | 55 |
| 27 | 27 - 31mm | 55 |
| 31 | 31 - 35mm | 65 |
| 35 | 35 - 41mm | 65 |
Important Notes
- * for non standard die sets
- Customized die sets are available
- Max. opening is the stroke between die sets fully closed and fully opened
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC control
