Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Manual Hose Crimping Machine MS-E38
The MS-E38 manual hose crimping machine is designed for high-pressure hose crimping applications. With specialized die sets, it can handle brake hose lines crimping and various tube or pipe connecting tasks.
Main Features
- Quick operation speed for high productivity
- Integrated button for easy and convenient operation
- High hardness die sets for durability
- Advanced technology cylinder construction
Technical Specifications
| Model | MS-E38 Manual Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
38 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 60 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 110 |
Additional Options & Notes:
• Customized die sets available in different sizes or shapes
• Special voltages including 110V, 208V, 240V, 415V (60HZ) available
• Foot pedal option for hands-free operation
• "*" indicates non-standard die sets
• Customized die sets available in different sizes or shapes
• Special voltages including 110V, 208V, 240V, 415V (60HZ) available
• Foot pedal option for hands-free operation
• "*" indicates non-standard die sets
Crimping Unit with Double Bevel Design
Large force capacity and high accuracy crimping unit for precise hose assembly.
Simple Operation Panel
User-friendly control panel designed for convenient operation, ideal for novice users.
Quality Solenoid Valve
Famous brand solenoid valve ensures reliable performance with low maintenance costs.
Crimping Reference Sheet
Comprehensive reference sheet provides crimping diameter specifications for each hose type.

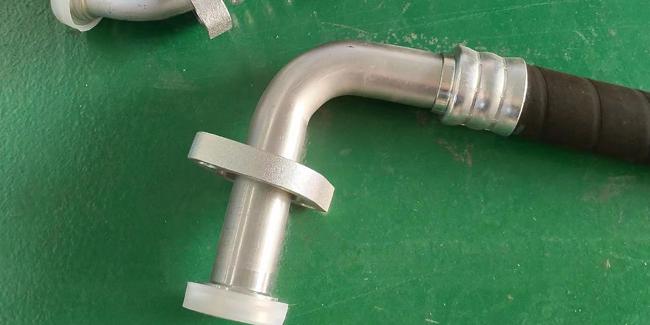

Hydraulic Hose Assembly Samples
Professional crimping results demonstrated with hydraulic hose assembly samples.
