Used Hydraulic Hose Crimping Machine with 640T Crimping Force, 14-87mm Range, and 4KW Power for Workshop Applications
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Used Hydraulic Hose Crimping Machine Hydraulic Pipe Clamping Machine Hose Crimper

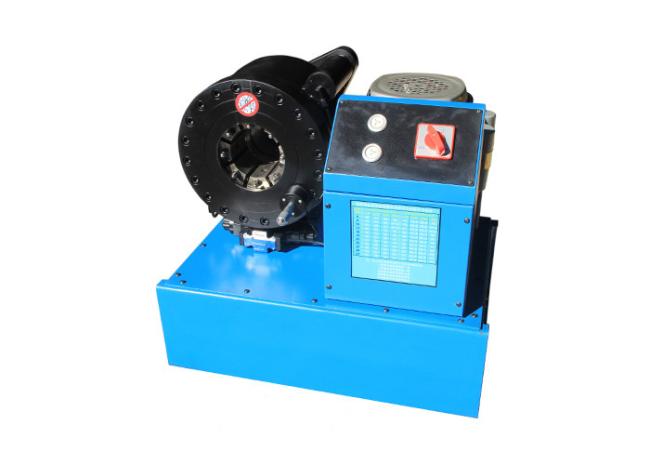

HYDRAULIC HOSE CRIMPING MACHINE MS-E38
DESCRIPTION
MS-E38 is a hose crimper specially designed for single piece production. With unique cylinder structure, it can crimp hose with six high tensile stainless steel wire spiraled. Can be used for forklift, hydraulic engine, oilfield extraction machinery, mine/road/construction machinery and so on.
MAIN FEATURES
- Advanced hydraulic cylinder making technology, long life service
- Compact structure, low maintenance cost
- Big hydraulic pump, more efficient
- Die sets with high hardness, good anti wear ability
TECHNICAL DATA
| Model | MS-E38 Used Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
38 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
- Customized die sets are available with different size or shape
- Special voltage such as 110V, 208V, 240V, 415V (60HZ) are available
- Foot pedal is available to make the hands free
- * for non standard die sets
