E38 Portable Hydraulic Hose Crimper with 640T Crimping Force and 10 Die Sets for Efficient Hose Crimping

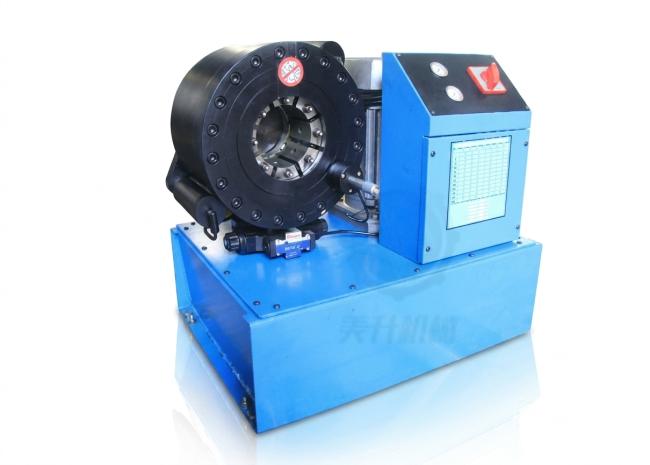

PORATBLE HYDRAULIC HOSE CRIMPER 2 INCH MS-E38
DESCRIPTION
MS-E38 is a portable hydraulic hose crimping machine with light weight and compact structure. The small size makes it low cost for shipping. After years of research and development, E38 has been the most proper model for hydraulic hose crimping.
MAIN FEATURES
1. Quick speed;
2. High efficiency;
3. Easy maintenance;
4. Low noise;
5. Long service time.
TECHNICAL DATA
|
Model |
MS-E38 Portable Hydraulic Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
| Hydraulic Oil | 50 (L) |
38 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
