220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
MS-51CG Rubber Flexible Hose Crimping Machine
The MS-51CG rubber hose crimping machine operates on a dual-hydraulic circuit principle, providing smooth movement and fast return cycles. Unlike spring-return systems, this design prevents mold locking issues and facilitates easy installation of various elbow types.
Key Advantages
- Forged one-piece oil tank for exceptional hardness and durability

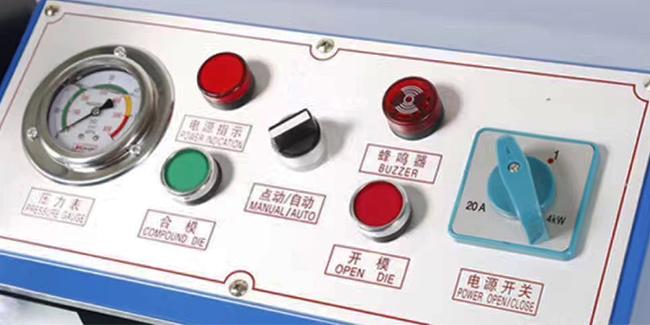

- Multifunctional operating panel for enhanced flexibility
- Shock-resistant pressure gauge for clear system pressure monitoring
- Standard foot pedal operation for hands-free convenience
- Integrated working light for improved visibility during crimping
- Side die set installation design for enhanced safety
Technical Specifications
| Model | MS-51CG Rubber Hose Crimper |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 500 Tons |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L×W×H) | 800 × 640 × 1300 mm |
| Weight | 320 KG |
51 Hose Crimper Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes
* Denotes non-standard die sets
Customized die sets are available upon request
Special voltage options include 110V, 208V, 240V, and 415V
Optional Accessories
- Quick Change Tool
- UC Control System
