Second Hand Hydraulic Hose Crimper with 780T Crimping Force, 14-127mm Crimping Range, and 3KW Power
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Second Hand Hydraulic Hose Crimper Hyd Hose Crimping Machine Air Hose Crimper

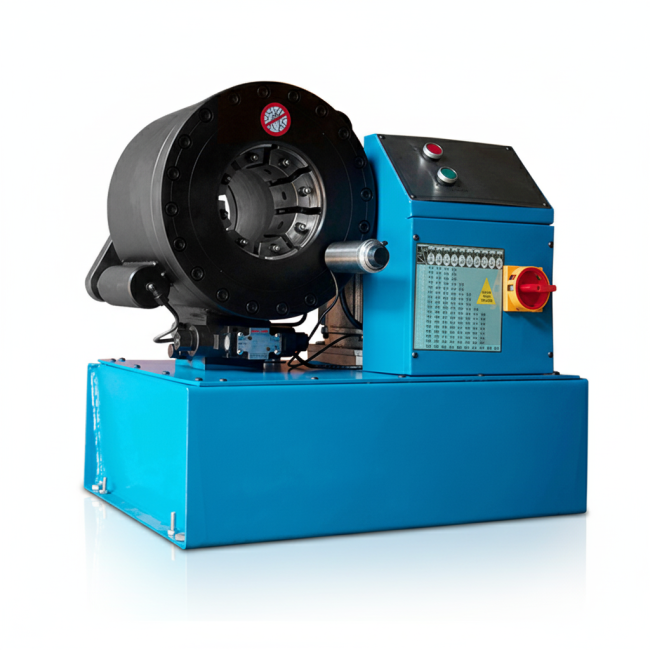

POWERFUL HYDRAULIC HOSE CRIMPING MACHINE MS-E150
MS-E150 hose crimper machine is a three inch model with die sets 13. It adopts world famous hydraulic cylinder making technology, making the machine crimp with bigger power and easy maintenance.
MAIN FEATURES
- High hardness with one piece structure
- Advanced crimping control micrometer, high accuracy
- Mold with quality steel after heat processing
- Famous spare parts, longer service time
TECHNICAL DATA
| Model | MS-E150 Used Hydraulic Hose Crimping Machine |
| Crimping Range | 14 - 127 (mm) |
| Crimping Force | 780 (T) |
| Hose Size | 1/4 - 3 (inch) |
| Max. Opening | 35 (mm) |
| Die Sets | 15 |
| Die Set Type | 150 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 650 (mm) |
| Weight | 250 (KG) |
150 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 87mm | 110 |
NOTE
- Customized die sets are available with different size or shape
- Special voltage such as 110V, 208V, 240V, 415V are available
- Foot pedal is available to make the hands free
- * for non standard die sets
