Manual Pump Brake Hose Crimping Machine with 350T Crimping Force and 14 - 87mm Crimping Range
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Brake Line Crimping Tool Manual Hydraulic Hose Crimper Parker Enerpac Crimper
BRAKE HOSE CRIMPING MACHINE MS-51M
Description
MS-51M is a manual hose crimping machine with crimping capacity up to 2 inch 4 steel wire braided rubber hose. It is the ideal choice for hose assembly crimping when there is no power available.
Advantages
- Compact structure with big crimping force
- Die sets with high hardness
- One piece forged steel to make the cylinder
- High precision
Technical Data
| Model | 51M Brake Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 350 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 730 (mm) |
| Width | 550 (mm) |
| Height | 680 (mm) |
| Weight | 170 (KG) |
51 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 74mm | 100 |
Note
• * for non standard die sets;
• Customized die sets are available;
• Max. opening is the stroke between die sets fully closed and fully opened.
• Customized die sets are available;
• Max. opening is the stroke between die sets fully closed and fully opened.
Optional
• Quick Change Tool
• Quick Change Die Set Rack
• UC control
• Quick Change Die Set Rack
• UC control

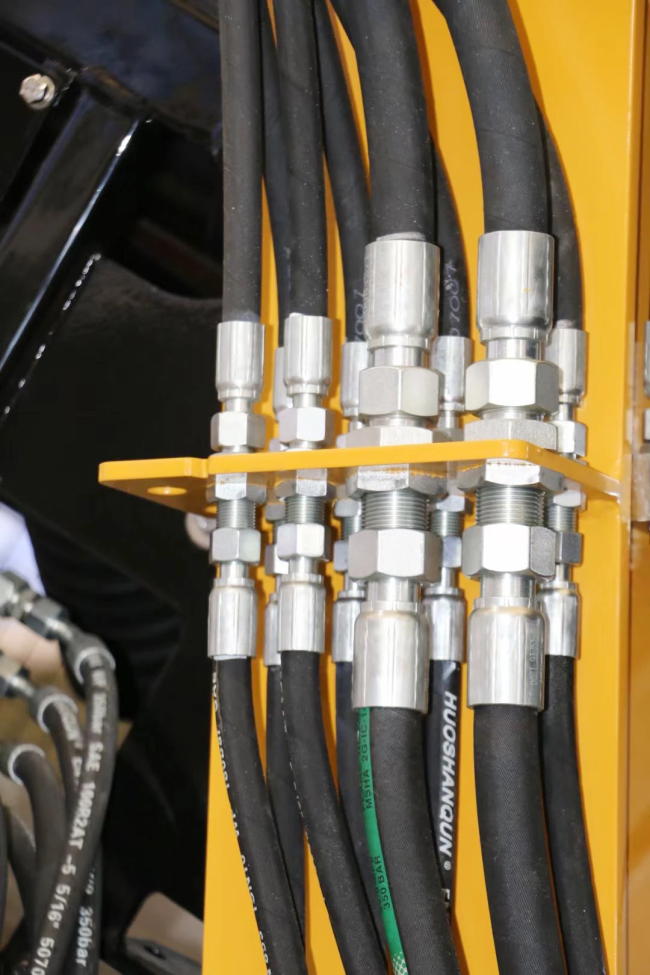

Crimping Results Demonstration
