High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper
FLEXIBLE HOSE PRESSING MACHINE MS-P150
DESCRIPTION
The MS-P150 hydraulic crimping hose machine is renowned for its large crimping size and substantial feed capacity. It features a super thin crimping head, allowing even bent fittings to be fed in easily.
ADVANTAGES
- Die sets with high hardness
- Advanced CNC control system with high stability
- Quick change for die sets, ensuring high efficiency
TECHNICAL DATA
| Model | MS-P150 Hose Crimper Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 380 (T) |
| Hose Size | 1/4 - 2 1/2 (inch) |
| Max. Opening | 61 (mm) |
| Die Sets | 14 |
| Die Set Type | P150 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 720 (mm) |
| Width | 970 (mm) |
| Height | 1600 (mm) |
| Weight | 1020 (KG) |

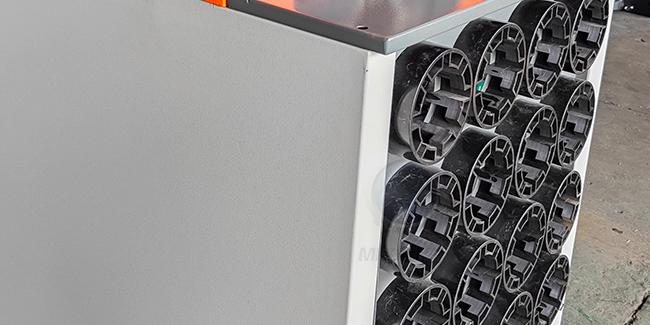

P150 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 80mm | 110 |
| 78* | 78 - 87mm | 110 |
NOTE
- * for non standard die sets
- Customized die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
