Two Inches Low Pressure Hose Crimping Machine 24V 12V Hydraulic Hose Crimper

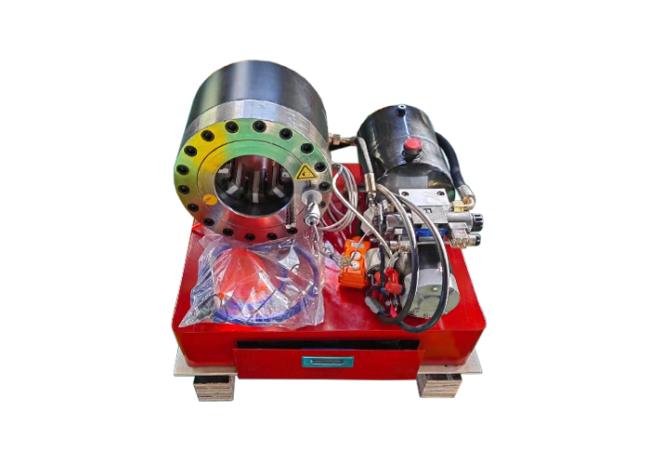

12V HOSE CRIMPING MACHINE MS-51DC
DESCRIPTION
MS-51DC is a domestic design battery drive hose crimping machine. With big motor and valve system, it can crimp hose from 1/4 to 2 inch. Voltage can be customized eigther 12V or 24V.
MAIN FEATURES
1. Forged crimping clylinder, long service time
2. Hand hold panel, easy to move to any position
3. High precision crimping control micrometer
4. Die sets drawer for a safe install
TECHNICAL DATA
|
Model |
MS-51DC Hydraulic Hose Crimper |
|
Crimping Range |
14-87 (mm) |
|
Crimping Force |
300 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
600 (mm) |
|
Height |
600 (mm) |
|
Weight |
170 (KG) |
51 CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale;

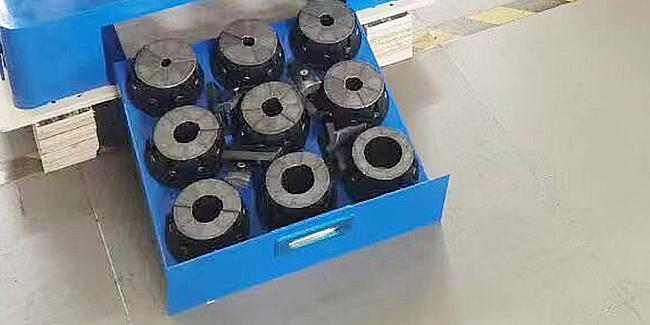

► HIGH TEMPERATURE DIE SETS
12 die sets with heat processing, hardness 59-63HRC, long life

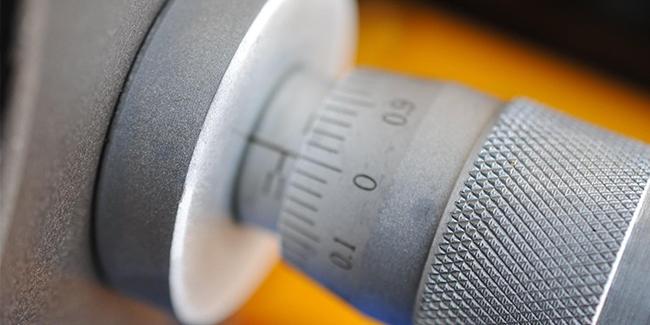

► CRIMPING MICROMETER
High precision, magnetic install, improve the efficiency

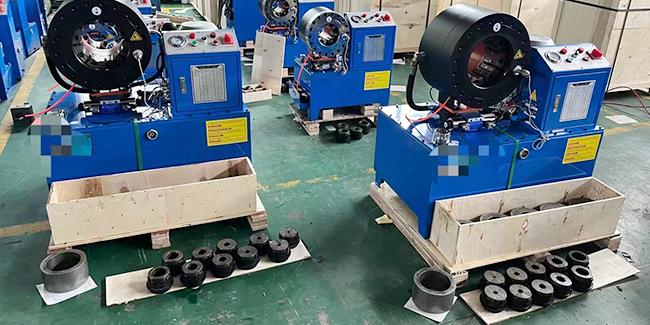

► FACTORY FAST DELIVERY
We are factory for hose crimping machine producing, delivery time for most models is 7 days

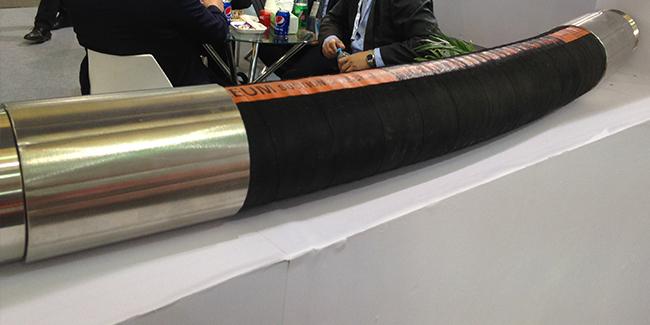

► APPLICATION
MS-51DC hose crimper is a good choice for on-site crimping of hydraulic hose assemblies, low pressure industrial pipes, cables and wire, etc.
