MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Fitting Crimping Tool Portable Hydraulic Hose Crimping Machine

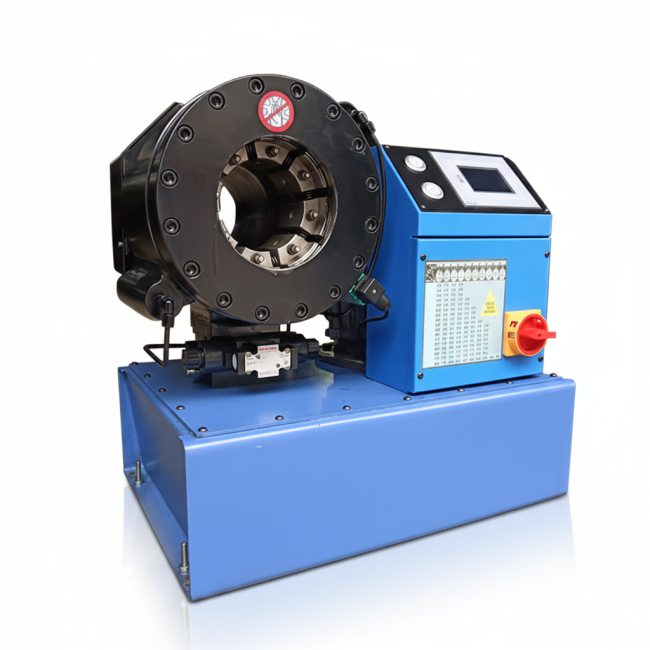

PORTABLE HYDRAULIC HOSE CRIMPER MS-NC130
DESCRIPTION
MS-NC130 portable hydraulic hose crimping machine is renowned for its intelligent CNC control systems and extensive crimping range. With advanced spare parts, it has become one of the best-selling models in its category.
ADVANTAGES
- Advanced PLC control for high stability
- Quick operation speed for large production capacity and high efficiency
- Unique cylinder manufacturing technology for extended service life
- High-quality, renowned spare parts
TECHNICAL DATA
| Model | MS-NC130 Portable Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 650 (mm) |
| Weight | 240 (KG) |
P32 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
NOTE
- * indicates non-standard die sets
- Customized die sets are available
- Special voltages 110V, 208V, 240V, 415V are available
