Hydraulic Hose Pressing Machine with 650T Crimping Force, 31.5Mpa System Pressure, and 14-87mm Crimping Range
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Pipe Pressing Machine Price Finn Power P32 Manual Water Hose Crimping Tool

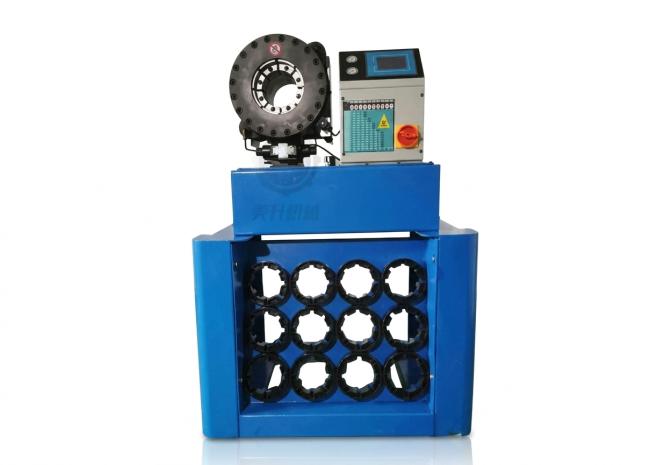

FAMOUS HOSE PRESSING MACHINE MS-NC130-I
DESCRIPTION
MS-NC130-I hose crimping machine is suitable for high pressure hydraulic rubber hose crimping up to 2.5 inch. It features substantial crimping force and compact structure with a stable performance system.
ADVANTAGES
- Famous spare parts, easy to source from local markets
- Low maintenance cost
- Quick-change die sets for high efficiency
- Substantial force with low noise levels
TECHNICAL DATA
| Model | MS-NC130-I Hose Crimper Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 SERIES CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16-19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30-34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
NOTE
- * for non standard die sets
- Customized die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
