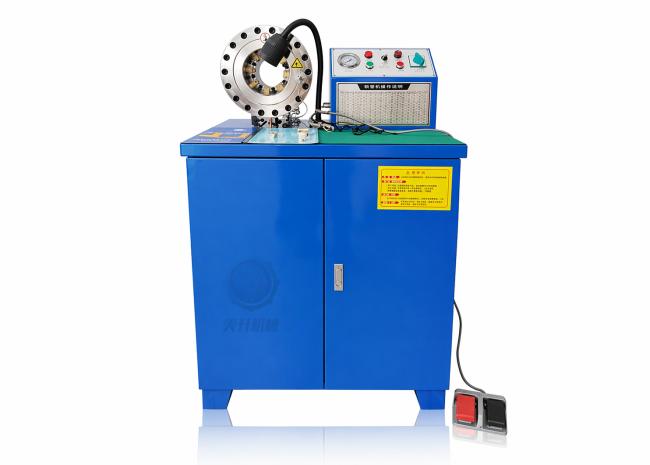

BRAKE HOSE CRIMPING MACHINE MS-51L
DESCRIPTION
MS-51L brake hose crimping machine is suitable not only for car low pressure brake lines, but also for high pressure hydraulic hose in the excavator or other hydraulic machinery.
MAIN ADVANTAGES
1. Forged steel making the oil cylinder, high stability;
2. Multifucntion foot pedal, large production;
3. Free change from aemi-automatic to automatic mode;
4. Easy for daily maintenance.
TECHNICAL DATA
|
Model |
MS-51L Brake Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |
51 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
