Indoor Wall Hanging Boiler , 12kw Electric Combi Boiler Intelligent Control
Product Parameters:
| NO. | Product model | Unit | LC-B-6kw | LC-B-8kw | LC-B-10kw | LC-B-12kw | LC-B-15kw |
| 1 | Rated power | KW | 6 | 8 | 10 | 12 | 15 |
| 2 | Rated current | A | 27.3 | 36.4 | 45.5 | 48.2 | 52.8 |
| 3 | Heating area | ㎡ | 60-80 | 80-100 | 100-120 | 120-140 | 150-180 |
| 4 | input voltage | 50HZ | 220V | 220V | 220V | 220V/380V | 220V/380V |
| 5 | Minimum flow of water pump configuration | L/min | 15 | 15 | 20 | 20 | 25 |
| 6 | Hot water yield 50 ℃ | L/min | 5.62 | 3.75 | 4.69 | 5.62 | 6.9 |
| 7 | Design thermal efficiency | ℃ | 98% | 98% | 98% | 98% | 98% |
| 8 | Maximum water temperature | ℃ | 85 | 85 | 85 | 85 | 85 |
| 9 | Low temperature protection temperature | ℃ | 5 | 5 | 5 | 5 | 5 |
| 10 | Overall dimension (length * width * height) | mm | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 | 360*170*630 |
| 11 | Water inlet and outlet interface | DN | 32 | 32 | 32 | 32 | 32 |

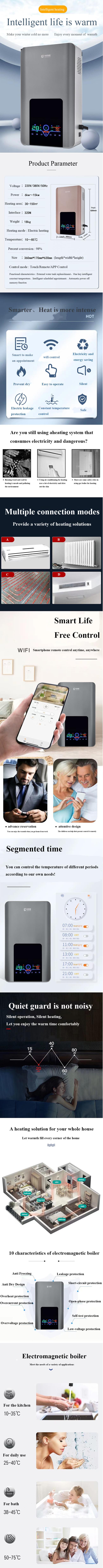

Product Details:
Why choose us ?
What are the advantages of wall mounted electric boilers
1. High thermal efficiency
The heat conversion rate of the high-frequency electromagnetic heating technology is as high as 95%, and the hot water is produced in 5 minutes. The electromagnetic eddy current heating is not easy to scale. The life of the whole electromagnetic heating boiler system is prolonged, the thermal efficiency is stable, and the maintenance is very simple.
2. Environmental protection and energy saving
The electromagnetic heating boiler does not burn, has no open fire, and has no pollution emissions. Truly make the boiler green.
3. Safe and reliable
The water and electricity of the whole machine are completely separated. The front circuit, the rear water path, the internal water flow and the external electricity flow. The power of the product is controlled by the weak current, and there are various alarm functions such as current, water and overtemperature. It is safe and reliable to use.
4. Intelligent control
It adopts microcomputer control, visual LED interface, touch screen operation, timing function, etc. the water temperature can be adjusted at will between 25-85 degrees.
5, non-contact heating, water and electricity separation, 100% to solve the safety problem.
Power saving method of wall mounted electric boiler:
Different house structures, room heights, lighting areas and room positions have different heat loads. The power of the electromagnetic heating furnace must be calculated according to the heat load of the heating room. The power of the electromagnetic heating furnace used by users often fails to meet the requirements of the room heat load, which not only causes the electromagnetic heating furnace not to stop or rarely stops, but also fails to reach the ideal heating temperature.
By adjusting the thermostatic valve of the radiator, the temperature of the room can be freely adjusted. We can lower the temperature of the thermostatic valve of the radiator in the rooms that are not frequently accessed, such as the auxiliary bedroom and the storage room, so as to better save the operation during the heating period.
The working principle of the electromagnetic heating furnace is intermittent work. When the water supply temperature is less than the upper limit temperature, the electromagnetic heating furnace is in the heating state. When the water supply temperature reaches the upper limit temperature, the electromagnetic heating furnace is in the shutdown state for thermal insulation.
