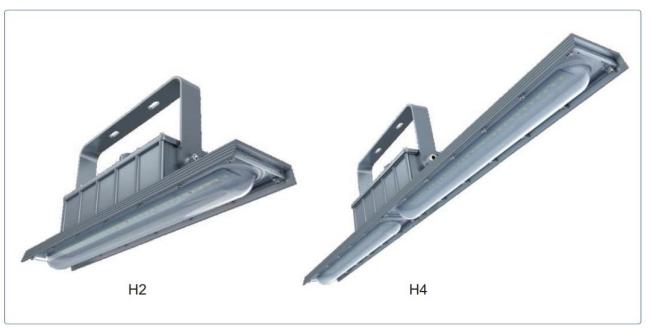

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures

• Features

 • Working Temperature: -40°C ~ +60°C.

• High quality SMT LED and Meanwell Driver.

• Heavy-duty and high impact resistance.

• Replaceable LED board and drivers.

• Integrated junction box for driver .

• Dimmable and battery back up function available.

• Marine rating powder coated finish treatment.

• Up to 5 years warranty.

• Various installation ways for different applications.

• Polycarbonate lens to make various beam angles.

• Applications

Oil and Gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Chemical industry

• All types of paint facilities

• Chemical production and storage

Ocean, marine and aerospace field

• Ocean platform operation facilities and structure

• Aerospace clean room and production

• Ocean vessel operations

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Other high humidity, high dust, high temperature, vapor locations

• EXPLOSION PROTECTION

Marking ATEX

Il3 G Ex ec IIC T5/T6 Gc

Il2 D Ex tb IIIC T80/100°C Db IP66

Marking IECEx Ex ec IIC T5/T6 Gc

Ex tb IIIC T80/100°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marking Marine

UL1598, UL1598A

ABS

Other Rating

IP66

• MATERIALS

• Housing: Copper-free aluminum

• Lens: PC

• Hardware: Stainless steel

• Mounting Bracket: Stainless steel

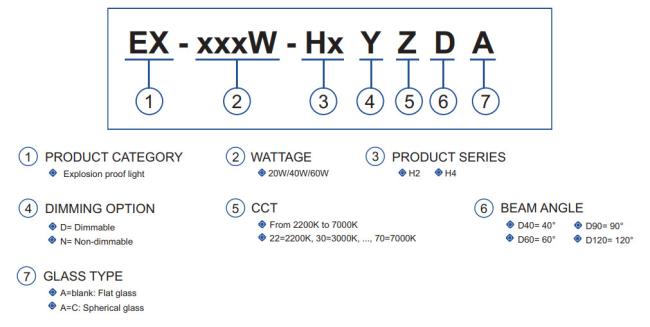

• Catalog Number Logic: ​

• Technical Data:

• PACKING INFORMATION

• Photometry

​

• DIMENSION

• MOUNTING

• QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.
