350-1200W Outdoor LED Flood Lights AC100-277V 4000K/5000K/6500K
ATEX Certified 350~1200W LED Explosion Proof High Bay Fixtures
- Product Description:
Hera series LED flood light provides upgrade solution to activate the fields.
Designed by Harley's experienced R&D team and developed with private tooling, this series is strongly recommended to fulfill customers' lighting requirement thanks to its wide range of wattage, high luminaire efficacy, and various beam angles. In addition, its outstanding durability is proven by a variety of tests and certifications.
- Applications:
Hera series sports light can be used in outdoor sports arena, exhibition hall, sports center, stadium, large square, shipyard, logistic center, etc.
- Features:
RGB and RGBW optional.
Intelligent control: DALI, DMX512, NFC wireless control.
Adjustable output current (AOC) with NFC.
10kV surge protection.
0-10V dimming control.
Various beam angels: 30° / 45° / 60° / 90° / 120° / T30 x 90 / T2VS / T3VS / T3VS-L.
Angle adjustable 360° for the whole lamp.
Laser aiming device optional, providing precise control in angling and aiming to exact optimal position.
The cable on the back of the lamp body is protected by a stainless-steel glass tube to prevent birds from pecking.
Temperature performance data:
Ambient temperature -40°C to 50°C (-40°F to 122°F)
- Standard materials:
Housing: Cold forging aluminum (ADC12)
Optical material: Tempered glass
- Technical datas:
| Type | Power(W) | Efficacy(Im/W) | Lumens(Im) | Input Voltage | CCT | CRI | Beam Angle | Ingress Protection |
| Hera 2 | 350/400/500/600 | 130 or 150 | 45500-90000 | 120-277VAC | 4000K/5000K/6500K | 70/80 | 30° / 45° / 60° / 90° / 120° / T30 x 90 / T2VS / T3VS / T3VS-L | IP66 |
| Hera 3 | 700/750/800/900 | 130 or 150 | 91000-135000 | |||||
| Hera 4 | 1000/1100/1200 | 130 or 150 | 130000-180000 |
- Packing information:
| Type | Quantity/Carton | Packing Size(inch) | Net Weight(Ibs) | Gross Weight(Ibs) |
| Hera 2 | 1 PCS | 24.6x24.8x9.8 inch | 18.3 | 25.1 |
| Hera 3 | 1 PCS | 32.4x24.8x9.8 inch | 36.8 | 46.5 |
| Hera 4 | 1 PCS | 41.3x26.1x11.4 inch | 51.1 | 64.6 |

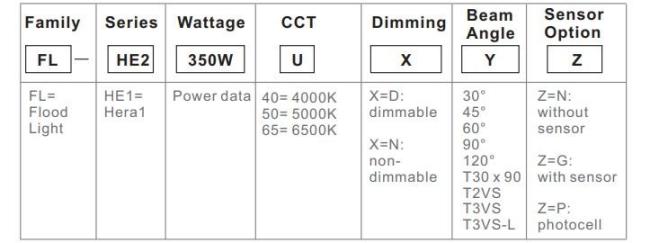

- Ordering information: Part number example
Example: FL-HE2 350W UXYZ
- Product types:

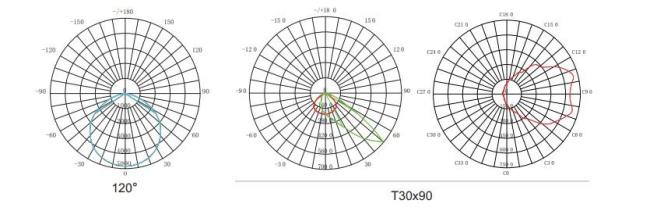

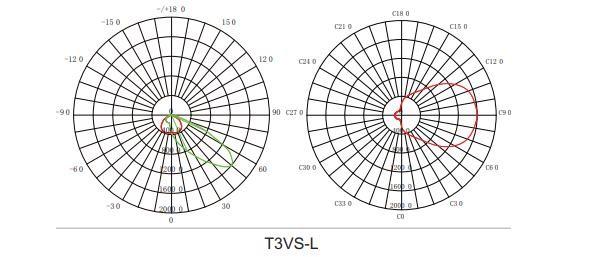

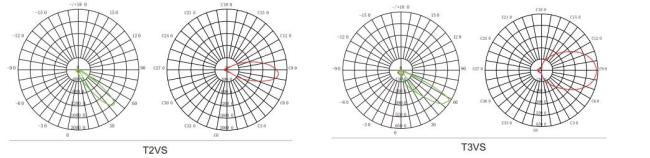

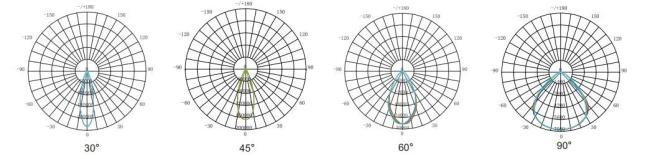

- Photometrics:
Optional beam angles: 30° / 45° / 60° / 90° / 120° / T30 x 90 / T2VS / T3VS / T3VS-L

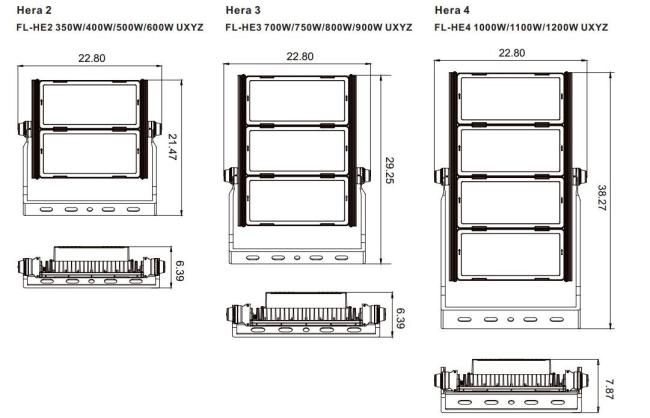

- Dimensions (in inches):
- QA:
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
