ATEX 20-80W Explosion Proof LED Lights Chemical Industry IP66

ATEX Certified 20~80W Anti-Explosion Proof Lamp Chemical Industry Ip66 Led Explosion Proof Lights

• Certifications:

EN-60079: II2 G Ex op is eb mb IIC T5/T6 Gb

                  II2 D Ex op is tb IIIC T95/80 Db

                  EN 60079-0 EN-60079-31 EN-60079-18

IP66

IK10

Ambient Temperature: T6: -20℃ to 40℃ (-4℉ to 104℉)

                                     T5: -40℃ to 60℃ (-40℉ to 140℉)

• Key Features:

0-10V dimming.

Beam angles are optional form 40°, 60° and 90°.

Best-in-class efficacy is up to 130 lumens per watt.

Great impact resistance with IK10 certified.

Professional light distribution design delivers uniform and comfortable lighting.

• Standard Materials:

Housing: Die-cast aluminum and A6061

Cover: Fireproof transparent PC

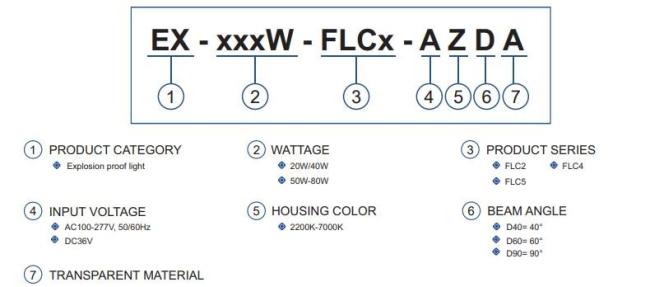

• Catalog Number Logic:

• Technical Data:

• Packing Information:

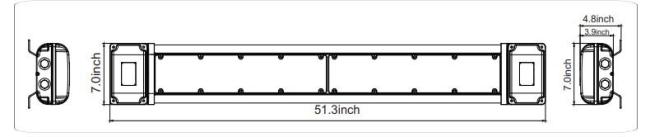

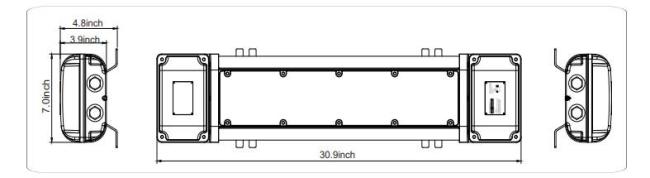

• Dimensions:

EX-xxxW-FLC2

EX-xxxW-FLC4

• Mounting:

• Application:

Oil and gas industry

•  All petroleum production and refining

•  Petroleum loading and transportation

•  Petroleum storage and retail

•  LNG industry

•  All mining operations and service

Ocean, marine and aerospace field

•  Ocean platform operation facilities

•  Aerospace clean room and production

•  Ocean vessel operations

Chemical industry

•  All types of paint facilities

•  Chemical production and storage

Metal treatment

•  Steel and aluminum factories

•  Pumping stations in any environment

•  Metal smelting, foundry and fabrication

Food and alcohol industry

•  Flour and fine particle production and storage

•  Food and distilling production

•  Alcohol industry

Other high humidity, high dust, high temperature, vapor locations.

• QA:

Q1. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q2. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
