Explosion Proof Lamp ATEX Certified 100~480W Chemical Industry IP66 Led Explosion Proof Light Gas Station A5

ATEX Certified 100~480W Explosion Proof Lamp 400W Chemical Industry IP66 Led Explosion Proof Light Gas Station A5

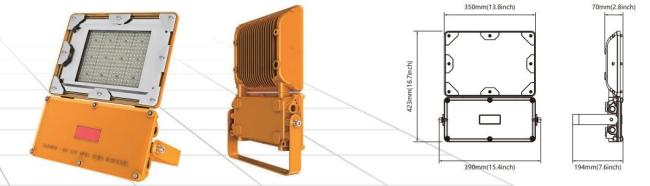

• Explosion-proof Light A5   EX-xxxW-A5-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W, 135W, 150W, 180W, 200W, 240W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V dimming

CCT:3500K-6500K

CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                                Emergency:-10°C - +45°C for T6/T80°C

                                                      -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000 Hours

Warranty:5 Years

Ex-mark ATEX:

Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

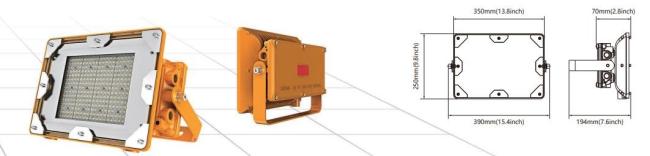

• Explosion-proof Light A6  EX-xxxW-A6-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V dimming

CCT:3500K-6500K

CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                               Emergency:-10°C - +45°C for T6/T80°C

                                                     -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000 Hours

Warranty:5 Years

Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

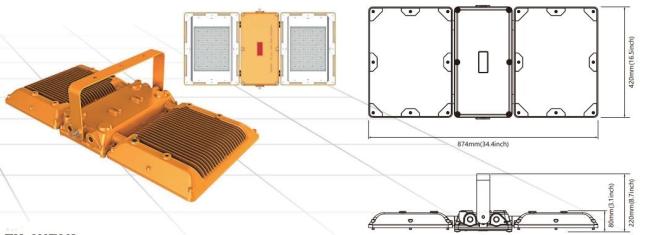

• Explosion-proof Light A7 EX-xxxW-A7-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):100W, 120W, 140W, 160W, 200W, 240W, 270W, 300W, 360W, 400W, 480W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V dimming

CCT:3500K-6500K

CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                                Emergency:-10°C - +45°C for T6/T80°C

                                                      -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000 Hours

Warranty:5 Years

Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

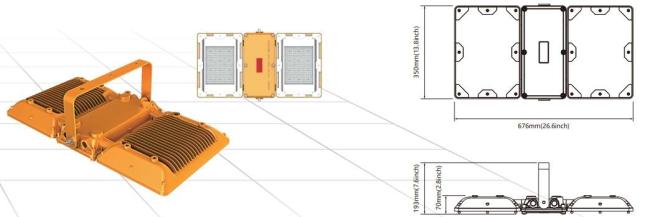

• Explosion-proof Light A8  EX-xxxW-A8-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):100W, 120W, 140W, 160W, 200W, 240W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V

Dimming CCT:3500K-6500K

CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                               Emergency:-10°C - +45°C for T6/T80°C

                                                     -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000

Hours Warranty:5 Years

Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

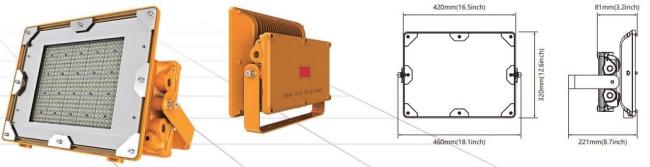

• Explosion-proof Light A9 EX-xxxW-A9-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W, 135W, 150W, 180W, 200W, 240W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V dimming

CCT:3500K-6500K

CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                               Emergency:-10°C - +45°C for T6/T80°C

                                                     -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000 Hours

Warranty:5 Years

Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

• Explosion-proof Light A10  EX-xxxW-A10-①/②/③

Input Voltage:AC110-277V/120-277V/220-244V

Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W

Power Factor:＞0.92

Surge Protection:4kV/6kV or 6kV/10kV

Intelligent Control:0-10V dimming

CCT:3500K-6500K CRI:70Ra / 80Ra

Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)

LED Chip:EMC3030

Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M

Working Temperature:Normal:-40°C - +45°C for T6/T80°C

                                                     -40°C - +60°C for T5/T95°C

                               Emergency:-10°C - +45°C for T6/T80°C

                                                     -10°C - +60°C for T5/T95°C

Degree of Protection:IP66

Enclosures Code:IK09

Glass Code:IK08

Lifespan:50,000 Hours

Warranty:5 Years

Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,

Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66

IECEx: Ex mb eb IIC T5/T6 Gb,

Ex tb IIIC T80°C/T95°C Db IP66

• FEATURES

■  High quality EMC LED and MEAN WELL Driver.

■  Light-weight design by aircraft aluminum.

■  Heavy-duty and high impact resistance.

■  Replaceable LED board and drivers.

■  Integrated junction box for driver with emergency back up.

■  Dimmable and battery back up function available.

■  Marine rating powder coated appearance treatment.

■  Up to 5 years limited warranty option.

■  Emergency time is over 90 minutes.

■  Various installation ways for different applications.

■  Glass lens or Glass with polycarbonate lens to make bigger beam angle.

• APPLICATION AREAS

Oil and Gas industry

■  All petroleum production and refining

■  Petroleum loading and transportation

■  Petroleum storage and retail

■  LNG industry

■  All mining operations and service Chemical industry

■  All types of paint facilities

■  Chemical production and storage Ocean, marine and aerospace field

■  Ocean platform operation facilities and structure

■  Aerospace clean room and production

■  Ocean vessel operations

Metal treatment

■  Steel and aluminum factories

■  Pumping stations in any environment

■  Metal smelting, foundry and fabrication

Food and alcohol industry

■  Flour and fine particle production and storage

■  Food and distilling production

■  Alcohol industry

Other high humidity, high dust, high temperature, vapor locations

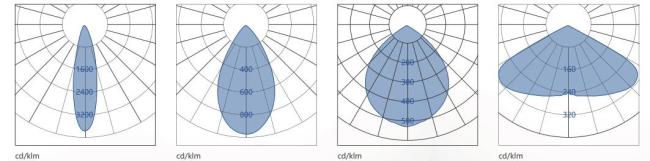

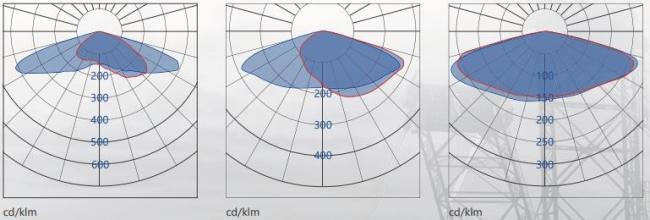

• Specialized anti glare optical lens to deliver symmetric and asymmetrical lighting solution 30°/60°/90°/120°/T2M/T3M/T4M

• QA

Q1. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q2. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
