Explosion Proof Lamp 20~240W Chemical Industry IP66 Led Explosion Proof Light Gas Station Ex High Bay Fixtures FLD

Explosion Proof Lamp 20~240W Chemical Industry IP66 Led Explosion Proof Light Gas Station Ex High Bay Fixtures FLD

• Classification:

UL Marking

Class | Division 2,Groups A,B,C,D;

Class II Division 1,Groups F,G;

Class III;

ATEX Marking

II2 G Ex eb mb db IIC T6/T5 Gb

II2 D Ex tb IIIC T80°C /T95°C Db IP66

• Ordering Guide

Example: EX-xxW-FLD12YZD

                EX-xxW-FLD14YZD

                EX-xxW-FLD22YZD

                EX-xxW-FLD24YZD

EX : Product categories; EX denotes explosion-proof light.

xxW: Wattage of luminaires.

         The power ranges from 20W to 240W. It increases by 5W stepwise, maximum 240W.

FLDxx: Shell shape; it can be FLD12, FLD14, FLD22, FLD24.

Y: Dimming options.

    Y=D means Dimmable

    Y=N means Non-dimmable

    Z: Color temperature options. "Z" can be 27 to 70, which denotes 2700K to 7000K. The value increases incrementally by 100K, up to a maximum of 7000K.

D: Beam angle options.

     The beam angle is adjustable with different lenses used.

     "D"= D15 (denotes 15°) to D180 (denotes 180°)

• Specifications

Model No.     EX-20W-FLD12 YZD; EX-40W-FLD12 YZD;

                      EX-60W-FLD12 YZD; EX-80W-FLD12 YZD;

                      EX-40W-FLD14 YZD; EX-60W-FLD14 YZD;

                      EX-80W-FLD14 YZD; EX-120W-FLD14 YZD;

                      EX-40W-FLD22 YZD; EX-60W-FLD22 YZD;

                      EX-80W-FLD22 YZD; EX-120W-FLD22 YZD;

                      EX-60W-FLD24 YZD; EX-80W-FLD24 YZD;

                      EX-100W-FLD24 YZD; EX-120W-FLD24 YZD;

                      EX-160W-FLD24 YZD; EX-240W-FLD24 YZD; (the power halved in emergency mode)

Construction: Die cast aluminum shell

                      Waterproof sealing ring: Polytetrafluoroethylene

Finish:            Powder coating

Hardware:      Stainless steel

Light source:  130 lm/W

                       120° beam angle

                       CCT 2700K-7000K

                       50,000 hours rated life

Power source: 120-277V, 50-60Hz

                        Built-in power supply

                        Over-voltage, over-current and short-circuit protection.

            IP :       IP66

            IK :       IK09

Ambient

temperature:  -40°C to +40°C (-40°F to +104°F)

                         EX-60W-FLD12 YZD; EX-80W-FLD12 YZD;

                         EX-80W-FLD14 YZD; EX-120W-FLD14 YZD;

                         EX-120W-FLD22 YZD; EX-160W-FLD24 YZD;

                         EX-240W-FLD24 YZD; -40°C to +60°C (-40°F to +140°F)

                         EX-20W-FLD12 YZD; EX-40W-FLD12 YZD;

                         EX-40W-FLD14 YZD; EX-60W-FLD14 YZD;

                         EX-40W-FLD22 YZD; EX-60W-FLD22 YZD;

                         EX-80W-FLD22 YZD; EX-60W-FLD24 YZD;

                         EX-80W-FLD24 YZD; EX-100W-FLD24 YZD;

                         EX-120W-FLD24 YZD;

Mounting

Methods :         Pendant Mounting, ceiling mounting;

                         embedded mounting

Fixture

Dimensions :EX-xxW-FLD12 YZD: 640x305x95mm

                                                          25.2x12x3.7inch

                       EX-xxW-FLD14 YZD: 1250x305x95mm

                                                           49.2x12x3.7inch

                       EX-xxW-FLD22 YZD: 640x605x95mm

                                                          25.2x23.8x3.7inch

                       EX-xxW-FLD24 YZD: 1250x605x95mm

                                                           49.2x23.8x3.7inch

Warranty : 5 years

• Packing Information

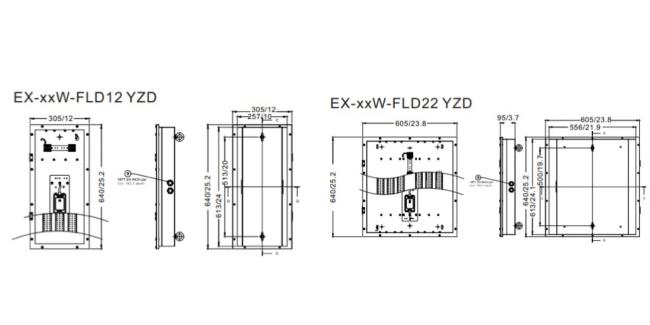

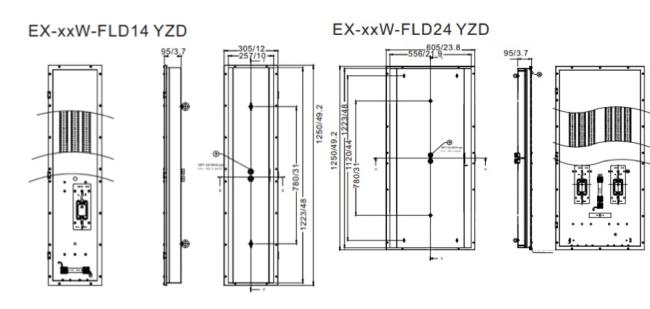

• Dimensions Unit: [mm/inch]

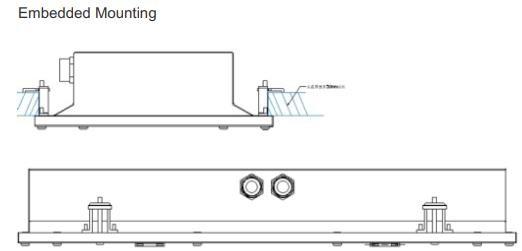

• Mounting Methods

• QA

Q1. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q2: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
