45W 75W Bright Solar Street Lights 100W 150W 200W 250W 300W Utra Thin
45W 75W 100W 150W 200W 250W 300W Utra-thin high lumen output LED street light
Features:
▪ Ultra slim heat sink design makes the lamp lighter and better in heat dissipation
▪ High lumen SMD5050 chip
▪ Waterproof IP66,high thermal conductivity housing

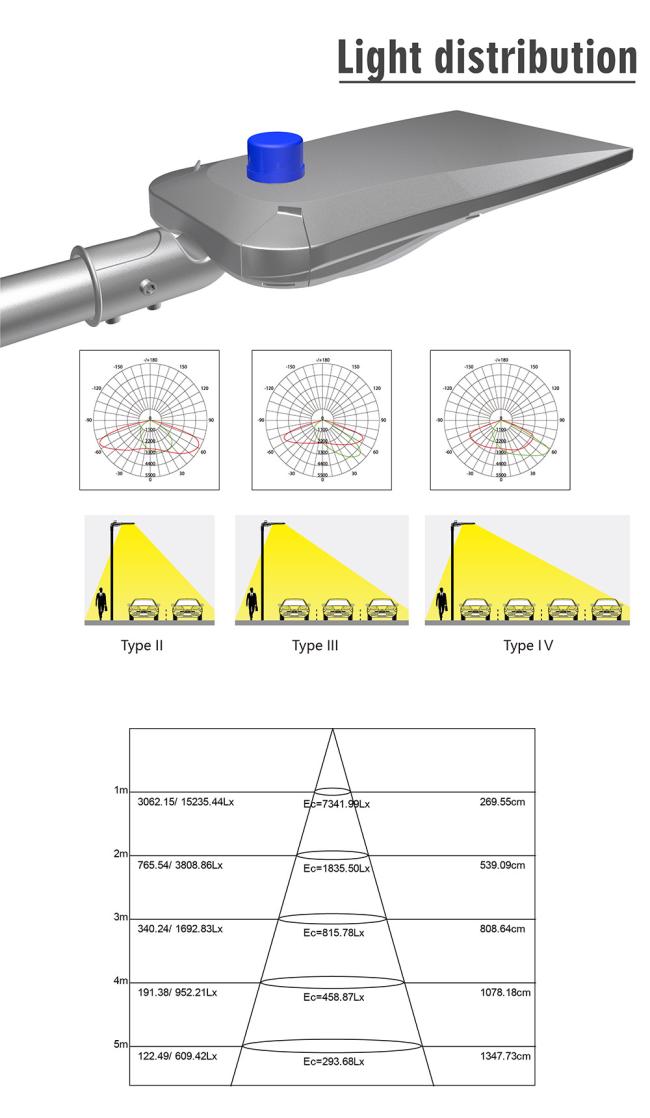

▪ Beam angle Type II glass lens with transmittance 92%
Specifications:
Technical Data
| Model Number | CODT-SL45W/75W/100W-B | CODT-SL150W/200W-B | CODT-SL250W/300W-B |
| Power | 45W/75W/100W | 150W/200W | 250W/300W |
| Luminous Efficacy | 155lm/W | 155lm/W | 155lm/W |
| Lumen Output | 6975lm/11625lm/15500lm | 22500lm/31000lm | 38750lm/46500lm |
| LED Quantity | 40pcs/80pcs/80pcs | 120pcs | 200pcs/240pcs |
| Dimension | L378*W280*H82mm | L570*W379*H111mm | L725*W379*H111mm |
| Luminaire Net Weight | 5.1KG/5.2KG/5.4KG | ||
| CCT | 3000K 4000K 5000K 6000K | ||
| CRI | >80Ra | ||
| System Efficiency | ≥90% | ||
| Lens | Type II | ||
Electrical Details
| Input Voltage | AC100-277V/347V/480V |
| Power Frequency | 50-60Hz |
| Output Voltage | DC36-48V |
| Power Efficiency | >92% |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | ≤15% |
| Dimmable | Yes (Optional) |
Other Details
| IP Rating | IP66 |
| Lifespan | 100,000+ Hours |
| Storage Temperature | -20º~65ºC |
| Operating Temperature | -20º~55ºC |
| Certification | UL,DLC Premium,SAA,TUV,VEET,CB |
| Color of housing | Gray(customized) |
Packing Information
| Model No. | N.G(KG) | Carton Size(CM) |
| CODT-SL45W-B | 5.1 | 58*32*40 |
| CODT-SL75W-B | 5.3 | 58*32*40 |
| CODT-SL100W-B | 5.4 | 58*32*40 |
| CODT-SL150W-B | 10.1 | 77*48*25 |
| CODT-SL200W-B | 10.2 | 77*48*25 |
| CODT-SL250W-B | 13 | 92*48*25 |
| CODT-SL300W-B | 13.1 | 92*48*25 |
Quick Details:
1. Tool-free LED Driver Replacement
Independent driver board easy replacement
2. With Buckle
Open the cover free-tool
3. Bubble Level
Application:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
