Petrochemical AISI316L 250AX Type Metal Structured Packing Tower Separation
Petrochemical AISI 316L 250AX Type Structured Packing Acid Resistance Tower Separation

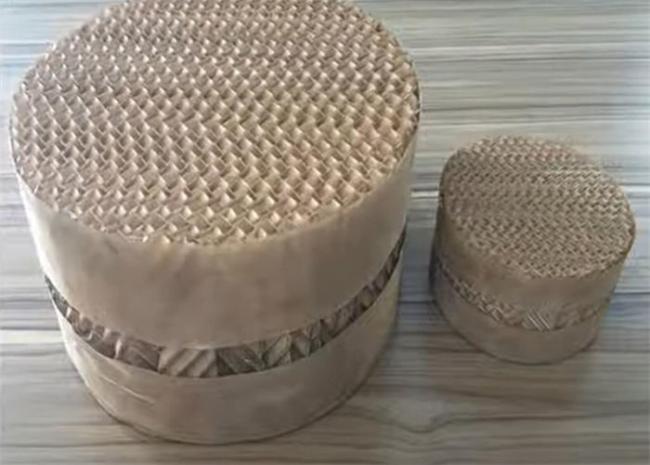

Petrochemical AISI 316L 250AX Type Structured Packing Introduces:
The structured packing is a kind of packing which is arranged in uniform geometric pattern and neatly stacked in the tower. Because it has the advantages of large specific surface area, small pressure drop, uniform fluid distribution, high mass and heat transfer rate, it has been applied. The early development is metal structured packing, plastic structured packing, ceramic structured packing and carbon fiber structured packing have been developed.
We found that when using the normal structure packing, the wall flow in the packed column is more than 30%. So that the loss ratio of the separation efficiency is 15-24%.But our AHS Metal Structured Packing can keep the wall flow below 2%. Structured packing typically consists of thin metal corrugated sheets or wire meshes arranged in a way that forces the fluid to take complex paths through the column, creating a large surface area for contact between the different elements.
Petrochemical AISI 316L 250AX Type Structured Packing Characteristics:
1. The High number of theoretical plates, high flux, and low pressure.
2. The number of theoretical plates increases with the decrease of gas load, and there is no low load extreme.
3. Flexible operation.
4. The extension effect is not obvious.
5. It can satisfy the requirements of high precision, large scale, and high vacuum distillation of distillation equipment. Material: stainless steel, brass, phosphor copper, low carbon steel, etc. Use a hard separation system, thermal sensitive system, distillation, and separation of high purity products.
Petrochemical AISI 316L 250AX Type Structured Packing Application
- Sea water deaerators
- Waste gas purification, drying, and gas, water-soluble solvents absorbers
- HCL and H2SO4 production
- Air separation
- Strippers
- Vacuum and atmospheric crude oil fractionator
- Negative pressure, normal pressure, and pressurization operation
- Liquid/liquid extraction
- Ethylene water quench tower
Petrochemical AISI 316L 250AX Type Structured Packing Model:
| The name of the packing | model | Specific surface area ㎡/m³ |
Void fraction % |
Packing weight kg/m³ |
Peak height H-mm |
Theoretical plate number Ntm |
Pressure drop Pa/m |
Maximum F-factor m/s(kg/m³) |
| Metal perforated plate packing | 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3 |
| 250Y | 250 | 97 | 120-170 | 12.5 | 2.0-3.0 | 200 | 2.6 | |
| 350Y | 350 | 94 | 240-280 | 9 | 20-2.5 | 300 | 2 | |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 | |
| Wire mesh packing | 250X | 250 | 97 | 70 | 12.6 | 2.5-3.0 | 25-120 | 2.5-3.5 |
| 500X | 500 | 95 | 140 | 6.3 | 4.0-5.0 | 200 | 2.0-2.4 | |
| 700X | 700 | 87 | 180 | 4.5 | 8.0-10.0 | 670 | 1.5-2.0 |
About Us:
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience producing mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform flawlessly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
Through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise during the company's development.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
FAQ:
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
