Removes Liquid Exhaust Air Vane Mist Eliminator pads 304ss Horizontal Installation
304ss Horizontal Installation Removes Liquid Exhaust Air Mist Eliminator
Mist Eliminator Work Principle
AHS offers 4 types of mist eliminators for the removal of droplets and mist from air streams. There are mainly Chevron Curved Blades, Kimre Composite Mesh Pads, Packed Beds, and Cyclone Separators.
Mist Eliminator Application
-
Absorption Towers
Acid Regeneration
Air Pollution Control
Alkylation
Amine Contactors
Ammonia
Ammonium Nitrate
Chlorine Production
Concentrators
Drying Towers
Flue Gas Desulfurization | Flue Gas Scrubbing
Gas Processing
Glycol Contactor
Nitric Acid
Scrubbers
Sulfuric Acid Production
-
-
-
-
-
-
Types Of Mist Eliminators For Industrial Gases
| Product |
Application
|
Nominal Pack Dimensions (inches) Depth x Width x Height
|
Buk Weight (Ibs/ square ft)
|
Pressure Drop at 13 fps (in WG)
|
Maximum Velocity (fps)
|
Material
|
Max Span (f)
|
| CF80MAx | Horizontal(Countercurrent) | 5.25 x 12 x 144 | 1.6 | 0.112 | 21.5 | PVC | 4 |
| XF80MAx | Vertical (Crosscurrent) | 5.25 x 23.38 x 144 | 1.1 | 0.200 | 15 | PVC | 8 |
| ME100 | Horizontal (Countercurrent) | 5 x 12 x 120 | 1.6 | 0.100 | 16.7 | PVC | 3 |
| DE080SS | Horizontal or Vertical | 5.75 x 12.8 x 96 | 7.3 | 0.068 | 20 | SS | 8 |
Mist Eliminator Parameter
| Type | Specification |
Surface Area m2/m3 |
Free Volume% |
| SP | 40-100 60-150 105-300 140-400 160-400 200-570 | 529.6 | 0.9788 |
| DP | 60-100 80-100 80-150 90-150 150-300 200-400 300-600 | 625.5 | 0.9765 |
| HP | 20-100 30-150 70-400 100-600 170-560 | 403.5 | 0.9839 |
| HR | 33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120 | 291.6 | 0.9832 |
Mist Eliminator Test
Company Profile:
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience producing mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.

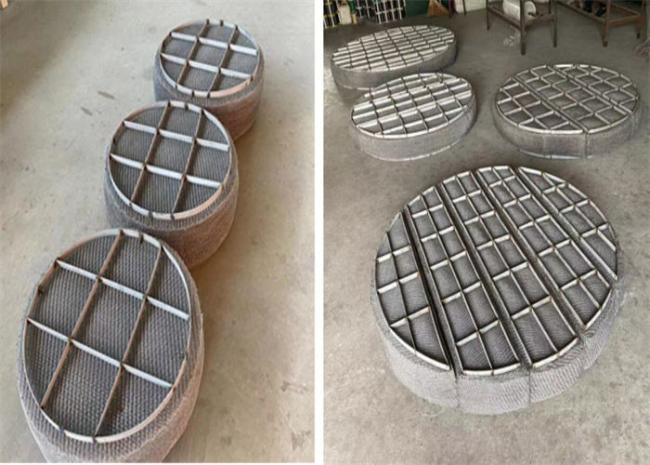

We claim that all mist eliminator pads our customers receive are qualified and perform flawlessly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
Through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise during the company's development.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
