316ss Chemical Industry 350y Structured Column Packing High Efficiency
Carbon Steel 250AX Type Porosity 95% Metal Structured Packing

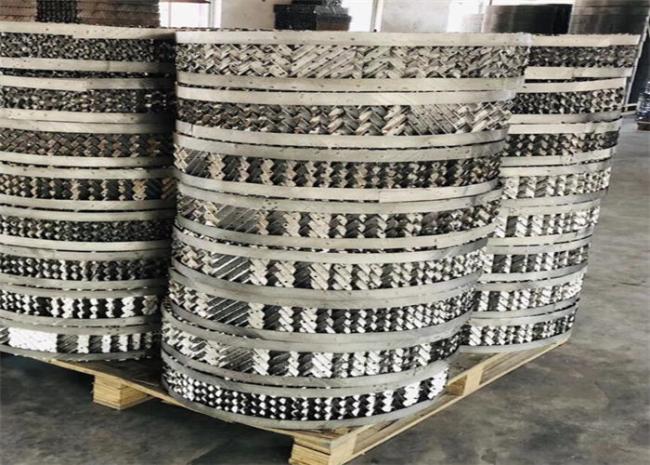

Metal Structured Packing Introduces:
The packing is made from a perforated plate with a channel groove on the surface and remains a structural feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency. The unit height is 50-200mm per coil, and the packing is prepared in blocks when the diameter is more significant than 1.5m.
Metal Structured Packing Characteristics:
1. The High number of theoretical plates, high flux, and low pressure.
2. The number of theoretical plates increases with the decrease of gas load, and there is no extreme low load.
3. Flexible operation.
4. The extension effect is not apparent.
5. It can satisfy the requirements of high precision, large scale, and high vacuum distillation of distillation equipment. Material: stainless steel, brass, phosphor copper, low carbon steel, etc. Use a rigid separation system, thermal sensitive system, distillation, and separation of high purity products.
Metal Structured Packing Application
The packing has advantages such as high capacity, low resistance, high mass-transfer efficiency, and strong resistance to fouling. It is widely used in unit operations like rectification, absorption, and extraction. According to packing types, the applicable minimal tower diameter is 80-200mm while maximal tower diameter reaches 13m, liquid spray density ranges from 0.2 to 200m3/(m2·h) and pressure ranges from vacuum to high pressure. For these reasons, it is a type of all-purpose efficient structured packing suitable for the chemical industry, chemical fertilizer industry, oil refining, petrochemical industry and natural gas industry, etc
Metal Structured Packing Model:
|
Packing Type
|
Theoretical
plate number m-1 |
Specific
surface area m²/m³ |
Void
volume m³/m³ |
Pressure
drop M Pa/m |
Bulk density
Kg/m³ |
Maximal F
factor m/s(Kg/m³)0.5 |
Liquid
loading m³/m².hr |
|
125Y
|
1-1.2
|
125
|
0.98
|
2*10(-4)
|
85-100
|
3
|
0.2-100
|
|
250Y
|
2-2.5
|
250
|
0.97
|
3*10(-4)
|
170-200
|
2.6
|
0.2-100
|
|
350Y
|
3.5-4
|
350
|
0.94
|
2*10(-4)
|
240-280
|
2.0
|
0.2-100
|
|
500Y
|
4-4.5
|
500
|
0.92
|
3*10(-4)
|
170-200
|
1.8
|
0.2-100
|
|
125Y
|
0.8-0.9
|
125
|
0.98
|
1.4*10(-4)
|
85-100
|
3.5
|
0.2-100
|
|
250Y
|
1.6-2
|
250
|
0.97
|
1.8*10(-4)
|
170-200
|
2.8
|
0.2-100
|
|
350Y
|
2.3-2.8
|
350
|
0.94
|
1.3*10(-4)
|
240-280
|
2.2
|
0.2-100
|
|
500Y
|
2.8-3.2
|
500
|
0.92
|
1.8*10(-4)
|
170-200
|
2.0
|
0.2-100
|
About Us:
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience producing mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform flawlessly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
Through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise during the company's development.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
FAQ:
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. It can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
