High Capacity PVDF PPR Plastic Structured Packing Low Pressure Drop
PP / PVC / PVDF / PPR High Capacity Low Pressure Drop Plastic Structured Packing
High Capacity Low Pressure Drop Plastic Structured Packing Introduction
Plastic structured column packing has the advantages of light weight, large capacity, pressure drop, large specific surface area and easy replacement, and is widely used in unit operations such as rectification, absorption and extraction.
The heat resistance of the material reaches 100°C for PP and 150°C for PVDF. Packing sheets can be perforated to improve mass transfer efficiency. If the separation requirement is not high, there is no need to punch holes to increase the stiffness of the sheet.
Types of plastic structured packing:
1. The wire mesh filler is a steel wire weave made of a mixture of PP and polyacrylonitrile.

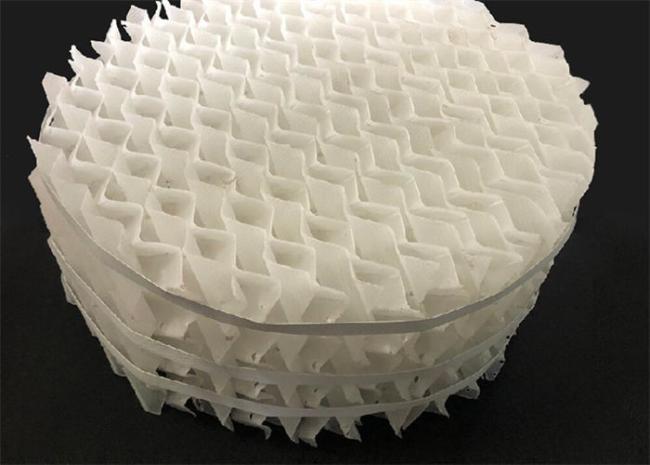

2. The plastic corrugated sheet packing is made of pp or PVDF sheet, which can be perforated to improve mass transfer efficiency.
High Capacity Low Pressure Drop Plastic Structured Packing Application
Application: petrochemical, chemical, pollution control, metallurgy and other industries.
product:
Random column packing (column packing): intalox saddles, super saddles, Nutter rings, cross baffle rings, cascade rings, Raschig rings, conjugated rings, catalyst bed support inert alumina ceramic balls, VSP and other materials are available Choose from ceramics, plastics, and metals.
Structured column packing (column packing): ceramic, plastic, metal structured column packing.
Ceramic products: ceramic honeycomb substrates, ceramic foam filters, molecular sieves, acid-resistant ceramics, wear-resistant ceramics,
grinding ceramic balls, heat exchange ceramics, etc.
High Capacity Low Pressure Drop Plastic Structured Packing Specification
Structured packaging has two slants, "X" and "Y". The "Y" type packing, with an inclination of approximately 45º to the horizontal axis, is the most widely used packing. They offer higher filtration efficiency than the "X" type, but at the cost of higher pressure drop/lower capacity. The "X" type packing has an inclination of 60° to the horizontal axis and is suitable for high volume and low pressure drop applications.
| The name of the packing | model | Specific surface area ㎡/m³ | Void fraction % | Packing weight kg/m³ | Peak height H-mm | Theoretical plate number Ntm | Pressure drop Pa/m | Maximum F-factor m/s(kg/m³) |
| Metal perforated plate packing | 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3 |
| 250Y | 250 | 97 | 120-170 | 12.5 | 2.0-3.0 | 200 | 2.6 | |
| 350Y | 350 | 94 | 240-280 | 9 | 20-2.5 | 300 | 2 | |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 | |
| Wire mesh packing | 250X | 250 | 97 | 70 | 12.6 | 2.5-3.0 | 25-120 | 2.5-3.5 |
| 500X | 500 | 95 | 140 | 6.3 | 4.0-5.0 | 200 | 2.0-2.4 | |
| 700X | 700 | 87 | 180 | 4.5 | 8.0-10.0 | 670 | 1.5-2.0 |
About Us
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
FAQ
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
