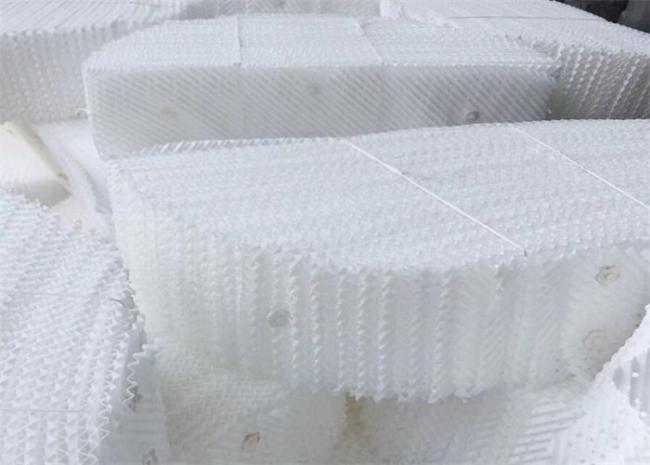

Customized Light Weight Easy To Replace Corrugated Structured Packing

Customized Structured Packing Introduction


Plastic grid packing is a new type of structured packing. It is made of 4-6mm PP board, PVC board, CPVC board and other plastic boards after a certain processing technology. According to the customer's tower diameter and manhole size, the spacing between the boards is generally 12 -50mm or so, the height of each layer is generally about 100mm.

Plastic grid packing has the outstanding advantages of large specific surface area, smooth surface, large ventilation, low pressure and strong anti-blocking. We can design the size and height of the plastic grid packing holes according to the customer's tower diameter and issue detailed drawings. Guaranteed to achieve the effect of use. Plastic polypropylene grid packing is composed of strip-shaped units through certain rules, and has a variety of structural forms.

The earliest grid packing used in industry is wood grid packing. The most commonly used ones are Gerich grid fillers, mesh grid fillers, honeycomb grid fillers, etc. Among them, Gerich grid fillers are representative. The grid packing has a low specific surface area and is mainly used in occasions requiring small pressure drop, large load and anti-blocking.

Plastic grid packing: The distance between the plates is large (generally 24~42mm), the porosity is high, the specific surface area is large, the gas and liquid have a fixed direction, and the channels of each layer of the plate are not uniform, with the increase of the gas volume Or the liquid volume is increased, and the effect between the gas and liquid phases is enhanced, but the amount of hysteresis liquid is small, the resistance of the tower is very small, and there is no phenomenon that the packed bed is full of liquid in the grid packing tower, so the plastic grid packing is used. For the renovation of old towers, a higher superficial velocity can be selected, which is 1.5 to 3 times that of general packing. The production capacity has been greatly improved, and the design of the new tower can reduce the diameter and height of the tower.

Plastic grid packing: It is composed of plastic plates, rods and tubes, which are assembled according to the diameter of the tower and the size of the entrance hole after the processing plant. The design and manufacture are simple, and the space utilization of the tower is improved. It uses plastic sheet as the main mass transfer component. The plastic sheet is perpendicular to the cross section of the tower and parallel to the direction of airflow and liquid flow. The upper and lower layers rotate at 45 degrees. The liquid descends along the surface of the grid by gravity, contacts the rising gas, and flows downward in a film-like shape on the surface of the plastic sheet. Or film contact, so the mass transfer effect is good and the absorption efficiency is high.


Customized Structured Packing Application

Application: petrochemical, chemical, pollution control, metallurgy and other industries.
product:

Random column packing (column packing): intalox saddles, super saddles, Nutter rings, cross baffle rings, cascade rings, Raschig rings, conjugated rings, catalyst bed support inert alumina ceramic balls, VSP and other materials are available Choose from ceramics, plastics, and metals.

Structured column packing (column packing): ceramic, plastic, metal structured column packing.

Ceramic products: ceramic honeycomb substrates, ceramic foam filters, molecular sieves, acid-resistant ceramics, wear-resistant ceramics,
grinding ceramic balls, heat exchange ceramics, etc.



Customized Structured Packing Specification

Structured packaging has two slants, "X" and "Y". The "Y" type packing, with an inclination of approximately 45º to the horizontal axis, is the most widely used packing. They offer higher filtration efficiency than the "X" type, but at the cost of higher pressure drop/lower capacity. The "X" type packing has an inclination of 60° to the horizontal axis and is suitable for high volume and low pressure drop applications.

About Us

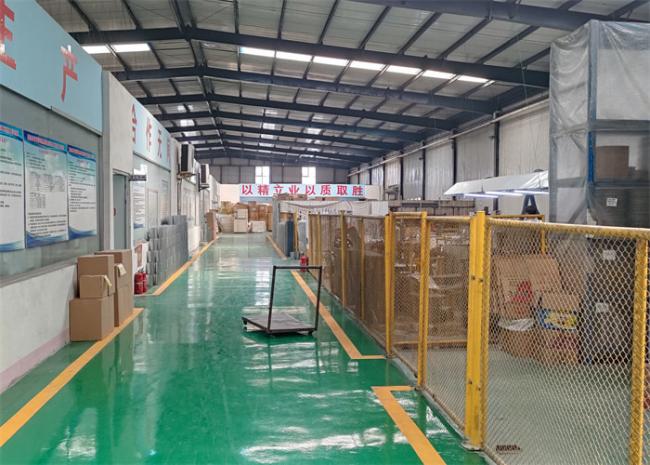

Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.

During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!

FAQ

Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.

Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!

Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.

Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
