SS304 316 Gas Scrubbing Metal Random Packing Pall Ring 6-89mm Height
SS304 316 Metal Random Packing Pall Ring For Gas Scrubbing
Metal Random Packing Pall Ring For Gas Scrubbing Description

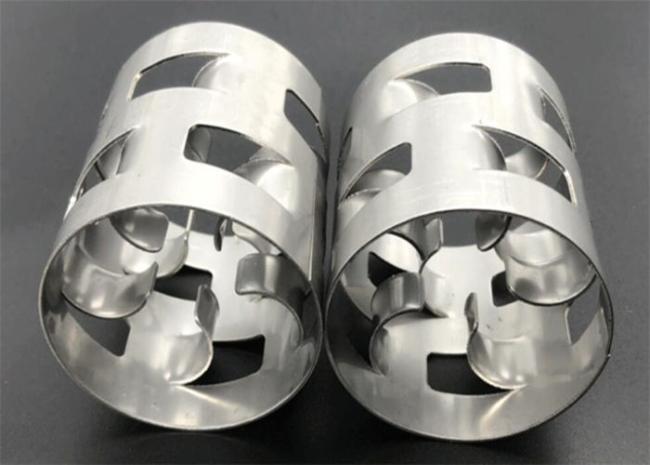

Pall ring packing is a new type of packing, which is developed to improve some of the main shortcomings of Raschig rings. Eight layers of rectangular small windows are opened on the wall of ordinary Raschig rings, and the small window blades overlap in the center of the ring. The upper and lower windows are overlapped with each other.
The main difference between it and Raschig ring packing is that a rectangular window hole is opened on the side wall, and the vanes of the window hole are bent into the center of the ring. Due to the opening of the ring wall, the distribution performance of gas and liquid is larger than that of Raschig ring. The improvement, especially the inner surface area of the ring can be fully utilized.
Metal Random Packing Pall Ring For Gas Scrubbing Material:
Pall ring packing is divided into three materials: ceramic, metal, plastic and so on. Among them, metal materials: 304, 316, 316L, carbon steel, 201, 410, etc.
Among plastic materials: PP, RPP, CPVC, PVDF, PVC, PTFE, FEP, PFA, etc. Among them, plastic Pall ring packing is generally divided into three shapes: rice shape, # shape, + shape, and other special-shaped Pall rings.
Metal Random Packing Pall Ring For Gas Scrubbing Features
Due to the high opening rate, large voids, large flux and low resistance of Raschig ring packing, the gas and liquid in the packed tower can pass freely, and the gas and liquid distribution in the packing layer is relatively good, especially the inner surface of the packing ring. It is easy to be wetted by liquid, regardless of its orientation, the liquid sprinkled on the packing flows along the outer wall and some flows along the inner wall. In this way, the degree of liquid dispersion is increased, and the utilization rate of the inner surface of the filler is improved. Therefore, it not only has larger throughput capacity and lower pressure drop, but also has high mass transfer and separation efficiency of the column.
Metal Random Packing Pall Ring For Gas Scrubbing Applications
Plastic Pall ring packing is especially suitable for medium and low temperature (60-150 degrees) stripping, absorption and washing towers, carbon dioxide degassing towers, ozone contact reaction towers, etc. as contact packing in petroleum, chemical, chlor-alkali, gas, environmental protection and other industries. and other reaction towers.
Ceramic Pall ring packing is suitable for carbon dioxide degassing tower acid mist purification tower, ozone contact reaction tower, etc. as contact packing and other reaction towers.
Application of metal Pall ring packing: vacuum distillation column, processing heat-sensitive, easy-to-decompose, easy-to-polymerize, and easy-to-carbonize materials.
Metal Random Packing Pall Ring For Gas Scrubbing reference data (size customizable)
| Specification |
Packing Size (mm) |
Surface area(m2/m3)
|
Free Space (%) |
No. Per Unit Volume (per m3) |
Specific Weight (kg/m3) |
| φ15 | 15×15×0.5 | 350 | 0.92 | 248000 | according to metal material |
| φ25 | 25×25×0.8 | 220 | 0.92 | 55000 | 290 |
| φ35 | 35×35×1.0 | 150 | 0.93 | 19000 | 430 |
| φ50 | 50×50×1.0 | 68 | 0.95 | 7000 | 130 |
| φ76 | 76×76×1.2 | 68 | 0.95 | 1870 | 80 |
FAQ
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
