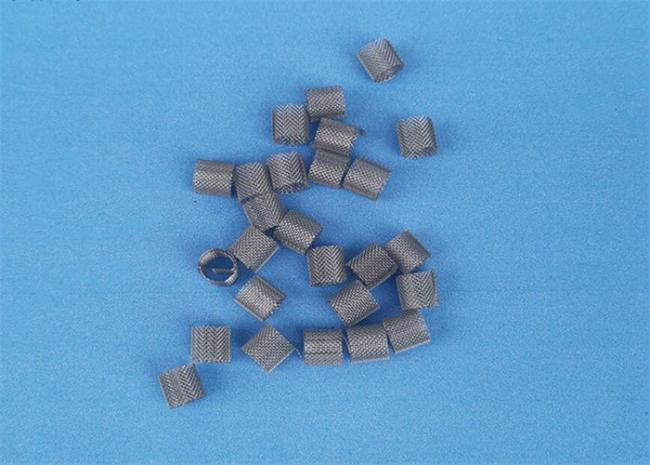

Oem Ss304 Metal Random Packing Column 0.3mm-1mm For Fertilizer Industry
Oem Ss 304 Scrubber / Column Tower Metal Random Packing
Metal Random Packing introduce
Due to the thin processing wall, large porosity, large flux, low resistance, heat resistance, corrosion resistance, and high separation efficiency, it is especially suitable for vacuum distillation towers to handle materials that are heat-sensitive, easy to decompose, easy to polymerize, and easy to carbonize. , which are widely used in packed towers in petrochemical, fertilizer, environmental protection and other industries.
Metal Random Packing classification:
Metal random packing mainly includes Raschig ring, Pall ring, modified Pall ring, stepped ring, moment saddle ring, conjugate ring, double arc ring, flat ring, 84 inner arc ring, Nat ring, Inte Locks, hexagonal ring, etc.
Metal Random Packing Features
The technical characteristics of the Pall ring packed tower are the material and shape of the packing. When choosing Pall ring packing, attention should be paid to the choice of packing, once the material or installation of Pall ring has problems, it will greatly affect the rectification effect. The thermal stability of plastic Pall ring packing material is not good, but its corrosion resistance, small quality and high processing performance. Metal Pall ring packing addresses poor thermal stability properties, but is susceptible to corrosion. Ceramic Pall ring packing can solve both temperature problems and corrosion problems, but its brittleness and weight are its disadvantages. Type bulk Pall ring packing is easy to process, pack and clean, but it is difficult to control packing wetting. The equipment investment of structured Pall ring packing suitable for most separations is much higher than that of bulk packing.
Metal Random Packing Applications
Various Separation and Absorption Applications
Absorption and Stripping Services
Steam Stripping
Quench Towers
Direct Contact Cooling
Reaction Towers
Distillation Columns
Tower Packing
At The An Hesheng Company, we offer Metal Pall Rings in a variety of different sizes, giving you the ability to optimize capacity and efficiency based on different application requirements.
Metal Random Packing reference data (size customizable)
| Item |
Packing Size (mm) |
Specific Weight (kg/m3) Stainless Steel |
No. Per Unit Volume (per m3) |
Surface area (m2/m3) |
Free Space (%) |
Dry Packing Factor m-1 |
|
AHSPRM-01 |
6*6*0.3 | 900 | 4,000,000 | 904 | 88.6 | 1307.4 |
| AHSPRM-02 | 10*10*0.3 | 480 | 768,000 | 482 | 93.8 | 583.8 |
| AHSPRM-03 | 13*13*0.3 | 420 | 410,000 | 415 | 94.8 | 489.2 |
| AHSPRM-04 | 16*16*0.3 | 345 | 210,000 | 344 | 95.5 | 393.2 |
| AHSPRM-05 | 25*25*0.3 | 214 | 51,000 | 212 | 96.2 | 229.8 |
| AHSPRM-06 | 25*25*0.4 | 288 | 53,500 | 212 | 96.2 | 229.8 |
| AHSPRM-07 | 25*25*0.5 | 395 | 52,000 | 216 | 95 | 237.2 |
| AHSPRM-08 | 25*25*0.6 | 439 | 53,500 | 219 | 94.2 | 244.1 |
| AHSPRM-09 | 38*38*0.4 | 193 | 15,180 | 143 | 97.2 | 148.4 |
| AHSPRM-10 | 38*38*0.5 | 246 | 15,180 | 145 | 96.7 | 151.7 |
| AHSPRM-11 | 38*38*0.6 | 328 | 15,000 | 146 | 95.9 | 154.6 |
| AHSPRM-12 | 50*50*0.5 | 185 | 6,500 | 106 | 97.5 | 128.5 |
| AHSPRM-13 | 50*50*0.8 | 315 | 6,500 | 108 | 96.8 | 130.5 |
| AHSPRM-14 | 50*50*1.0 | 380 | 6,500 | 132.5 | 96.0 | 134.0 |
| AHSPRM-15 | 76*76*1.0 | 265 | 1,920 | 69 | 97.4 | 79.6 |
| AHSPRM-16 | 89*89*1.0 | 224 | 1,220 | 61 | 97.1 | 66.2 |
FAQ
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
About Us
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
