Scrubber Mass Transfer Plastic Random Packing 37mm High Performance
Scrubber mass transfer packing PP Lalu ring packing Plastic Random Packing

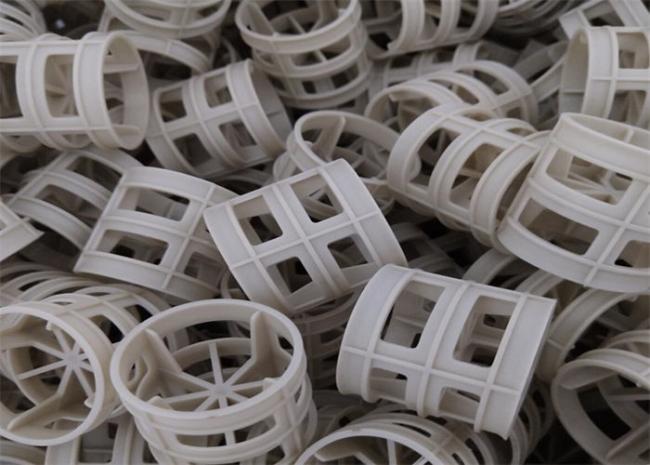

PP Lalu ring packing Plastic Random Packing
Mass transfer packing of scrubber PP PP Lalu ring packing is very similar to PP Pall ring. PP Lalu ring is based on Pall ring with flanges added at both ends. This structure improves vapor-liquid distribution and makes full use of The inner surface of the ring is removed, so that the gas and liquid in the packed tower can pass freely from the window. And it has the characteristics of large void ratio, low pressure drop and mass transfer unit height, high flooding point, sufficient vapor-liquid contact, small specific gravity, and high mass transfer efficiency.
The scrubber mass transfer packing polypropylene PP Lalu ring packing is developed on the basis of the Pall ring, this design makes the flow increase and the pressure drop decrease. pp Lalu ring packing is made of high temperature and corrosion resistant materials. The main materials include: PP, PE, RPP, PVC, CPVC and PVDF.
PP Lalu ring packing Plastic Random Packing
The melting point of the plastic lalu ring is 164-170 °C, and it can be sterilized at a temperature above 100 °C. When not subjected to external force, it will not deform at 150 ° C, and has good stress relaxation resistance at 90 ° C. Its embrittlement temperature is -35 ° C. Because of its high crystallinity and regular structure, polypropylene has excellent mechanical properties. , has outstanding flexural strength, such as PP injection-molded-body living hinge, can withstand 70 million times of folding and bending without damage marks, has good heat resistance; product chemical stability is very good, in addition to energy In addition to being attacked by concentrated sulfuric acid and concentrated nitric acid, it is relatively stable to other chemical reagents, and its chemical stability is also improved with the increase of crystallinity.
PP Lalu ring packing Plastic Random Packing Technical Parameters:
| Type | OD mm | High mm | Stacked number no/m3 |
Free Space(%) |
Surface area(m2/m3) |
| 25 | 25 | 9 | 170000 | 82 | 195 |
| 47 | 47 | 19 | 32500 | 88 | 185 |
| 51 | 51 | 19 | 25000 | 89 | 180 |
| 59 | 59 | 19 | 17500 | 92 | 150 |
| 73 | 73 | 27.5 | 8000 | 89 | 127 |
| 95 | 95 | 37 | 3900 | 90 | 94 |
PP Lalu ring packing Plastic Random Packing Advantages
1. Special structure, large flux, low-pressure drop, and good impact resistance.
2. Strong resistance to chemical corrosion and large void space.
3. Energy saving, low operating cost, convenient loading, and unloading.
4. Low resistance.
5. High operational flexibility.
6. High mechanical strength.
7. Chemical resistance, such as acid, alkali, and salt.
8. Temperature stability.
9. Various internal shapes. Can be adapted to different applications.
10. Sturdy and durable, suitable for deep-packed beds.
Applications
Plastic lalu ring is suitable for various separation, absorption, desorption devices, atmospheric and vacuum devices, synthetic amine decarbonization, desulfurization systems, ethylbenzene separation, isooctane, toluene separation, etc.
FAQ
Q: If I want to know the price, what information should I give you?
A: Material, size, application/purpose, quantity, payment term FOB or CIF, packaging term, etc.
Q: Is the size fixed?
A: No, except for table size. Can be customized according to demand!
Q: Can I negotiate the price?
A: Yes, we will give discounts according to the quantity and type of products you need.
Q: How long is the delivery time?
A: It usually takes 7-10 working days; it depends on the specific quantity and type.
About Us
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
